In modern HVAC systems, improving energy efficiency is a top priority. Most fans, pumps, and compressors now rely on variable frequency drives (VFDs) to adjust speed and reduce energy consumption. However, this shift has introduced a less visible issue. As VFD technology becomes more common, motors are exposed to high-frequency electrical signals that did not exist in traditional systems. Over time, these signals can create electrical imbalances inside the motor, leading to shaft voltage buildup—an issue that often goes unnoticed until it starts causing real damage.

2. Why HVAC Motors Are Prone to Shaft Current

VFD-driven motors generate non-sinusoidal waveforms, which create capacitive coupling between internal components of the motor. This causes electrical potential to accumulate on the shaft. When the voltage exceeds a certain threshold, it discharges through the bearing in the form of microscopic sparks.

• Long operating hours (often 24/7)
• Distributed systems across large buildings
• Limited routine inspection

These factors make HVAC motors particularly vulnerable to gradual electrical damage.

3. The Real Impact: Maintenance Cost and System Reliability

At first, the effects of shaft current may seem minor—slight noise or vibration that can easily be ignored. But over time, repeated electrical discharge damages the bearing surface, leading to increased friction, lubrication breakdown, and eventually premature failure. In commercial buildings, this doesn’t just mean replacing a motor component. It can disrupt ventilation, affect indoor comfort, and even impact business operations. For facility managers, this translates into higher maintenance costs and unexpected downtime, which are far more expensive than the initial issue itself.

4. Why Traditional Solutions Fall Short

Some HVAC systems attempt to address this issue using insulated bearings or simple grounding methods. However, these approaches often fail to solve the root problem.

• Insulation only redirects electrical energy rather than eliminating it
• Traditional brushes wear quickly and lose effectiveness over time
• Continuous operation reduces long-term stability

As a result, many systems still face recurring failures.

5. Volsun Solution: Stable and Long-Term Protection

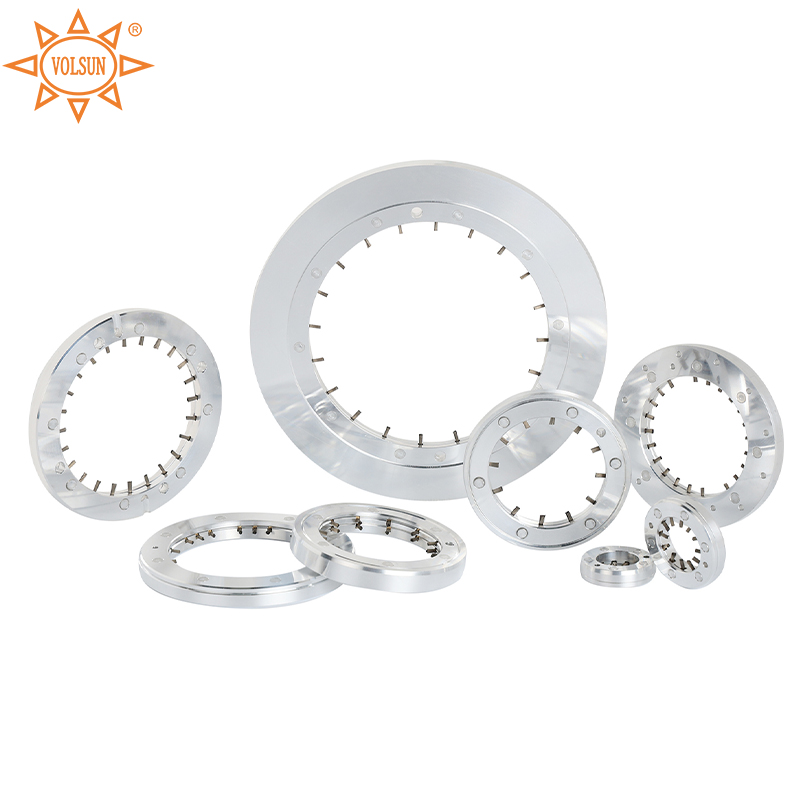

The shaft grounding ring from Volsun is designed to address this issue directly. Instead of blocking or redirecting electrical energy, it provides a controlled path for shaft current to safely discharge. Installed close to the bearing, it allows electrical charges to flow to ground before they can cause damage. With a static resistance of less than 1Ω and a dynamic contact resistance maintained within 10Ω throughout its service life, the solution ensures consistent performance even under continuous operation.

6. Designed for Continuous Operation Environments

HVAC systems demand reliability over long periods with minimal maintenance. Volsun’s grounding ring uses metallized carbon fibers that maintain stable contact with the shaft, even during extended operation.

• Low wear over time
• Stable electrical contact
• Reduced maintenance needs

This makes it particularly suitable for building systems where downtime must be minimized.

7. Application Results: Lower Cost, Higher Reliability

By integrating shaft grounding rings into HVAC systems, operators can reduce the risk of unexpected failures while improving overall system stability. Fewer breakdowns mean fewer emergency repairs, and longer component lifespan helps lower total operating costs. Over time, this creates a more reliable and predictable maintenance cycle, which is especially valuable in large-scale buildings where HVAC systems play a critical role.

As HVAC systems continue to evolve, the balance between efficiency and reliability becomes increasingly important. Addressing shaft current is a key step in ensuring that energy savings do not come at the cost of long-term performance.

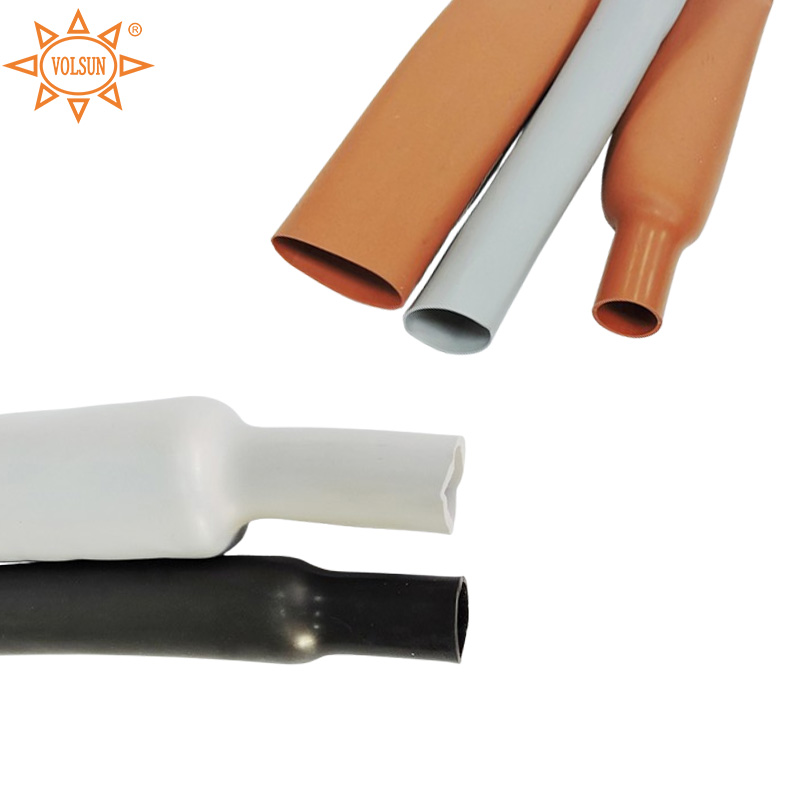

Seamless Installation Logic The core of the MPRS series’ efficiency lies in its 2:1 heat shrink ratio and low shrinking temperature. The 1kV series begins to shrink at just 70C, while the 10kV and 35kV series operate in a range of 84C to 120C. This allows installers to use standard industrial heat guns or ovens to achieve a fast, uniform recovery.

• Flexible Geometries: Because the polyolefin material is soft and high-strength, it easily slides over L-shaped bends, U-shaped corners, and bolted joints.
• Controlled Axial Change: With an axial change rate of only -8% to +8%, engineers can cut the tubing to precise lengths, knowing it will stay stable during the heating process.

Comprehensive Size and Color Customization

No two projects are identical, which is why Volsun provides a massive range of specifications.

• Size Range: Our catalog spans from Φ8.0mm for small low-voltage wiring up to Φ180.0mm for high-capacity industrial busbars.
• Visual Identification: Standard colors include red, yellow, and green, aligning with international phase-coding standards. We also offer black, white, and blue, and can customize colors to meet specific branding or safety requirements.
• Custom Packaging: While standard plates come in 20m or 25m lengths, we provide customized packaging to reduce waste on the assembly line.

By choosing a busbar sleeve that combines ease of installation with a vast array of technical specifications, companies can reduce labor costs and improve the visual and technical quality of their electrical installations. Whether you are insulating a simple low-voltage busbar slot or complex 35kV high-voltage equipment, the MPRS series offers the adaptability needed for the modern job site.

The Dielectric Challenge of Air Gaps In a traditional uninsulated system, air serves as the primary dielectric medium. However, air has a relatively low dielectric strength, meaning that significant physical distances—known as air clearances—must be maintained between phases and to the ground to prevent electrical arcing or flashover. This requirement often leads to bulky, oversized switchgear cabinets. The MPRS series, made from radiation crosslinked polyolefin, changes this equation entirely. With a breakdown strength of more than 20kV/mm, these sleeves provide a high-performance insulating barrier that far exceeds the insulating properties of air.

Engineering the Compact Switchgear By applying the 10kV or 35kV MPRS sleeves, designers can effectively shorten the minimum safety distance between systems. This reduction in phase spacing allows for:

• Significant Cabinet Downsizing: Smaller enclosures lead to lower material costs for steel and copper, easier transportation, and simpler installation in cramped urban substations.
• Enhanced Operational Safety: Even in tighter configurations, the material’s resistance to electric carbon marks ensures that the risk of surface tracking and flashover is minimized.
• Reliability Under Load: These sleeves are designed to perform in demanding environments, with an operating temperature range of -55C to 125C.

Technical Integrity for Long-Term Use

The engineering logic is clear: when you increase the dielectric strength of the busbar surface, you decrease the necessary volume of the cabinet. Volsun’s MPRS-35KV, for instance, is specifically suitable for high-voltage equipment bus insulation protection. By choosing a product with a volume resistivity of 10¹⁴Ω.cm, engineers ensure that the insulation remains a permanent, reliable barrier throughout the lifecycle of the switchgear. For the modern grid, MPRS tubing is the strategic choice for combining safety with spatial efficiency.

This honor reflects Volsun’s long-term commitment to high-quality growth and continuous improvement in the field of polymer materials. By focusing on silicone rubber technology and advanced insulation materials, Volsun has steadily enhanced its research and development capabilities while maintaining stable and efficient manufacturing operations.

Over the years, the company has built a solid reputation for delivering reliable solutions in electrical insulation, cable protection, sealing systems, and thermal management. Its products are widely used in power distribution, telecommunications infrastructure, and industrial applications, where performance stability and safety are critical.

Looking ahead, Volsun will continue to strengthen its innovation capabilities, optimize product performance, and expand its presence in global markets. The company remains committed to providing high-quality, dependable material solutions to customers worldwide.

High-Voltage Safety in the EV Ecosystem

Modern EV battery packs and rapid-charging systems operate at significantly higher voltages than traditional internal combustion vehicles. Standard insulation is simply not enough to prevent dangerous arcing or dielectric breakdown. The Volsun series provides a dedicated 7000V (7kV) breakdown voltage variant. This high dielectric strength is crucial for protecting busbars, charging ports, and cable connections within the Battery Management System (BMS). It ensures that even under peak loads or sudden surges, the system remains safely isolated, protecting both the vehicle's sensitive electronics and the passengers inside.

Reliability for Rail and Special Vehicles

In rail transit and special-purpose vehicle applications, materials must endure constant mechanical stress. Beyond being a high-temp insulator, the NS-GF200RUB-D is physically resilient. With a tear strength that above 50N/mm (for sizes above diameter 4.0mm), these sleeves resist the constant vibration and potential abrasion found in moving locomotives, subways, or heavy-duty construction machinery. Furthermore, the product is tested against coating displacement and sticking, ensuring that the protective layer stays exactly where it’s supposed to be, even in high-humidity or chemically active environments.

Versatility in Safety Identification

In the world of complex industrial wiring, safety is also a matter of visual clarity. Volsun offers these sleeves in a diverse array of standard colors: Transparent, White, Black, Red, Yellow, Blue, Green, and Orange. Custom colors can also be manufactured to meet specific brand or safety requirements. In an EV wiring harness, this allows technicians to instantly distinguish between high-voltage orange lines, ground wires, and signal cables. This systematic color-coding significantly reduces the risk of human error during assembly, troubleshooting, or emergency repairs.

.

As the industry moves toward faster charging times and more powerful electric motors, the need for reliable, 200C rated insulation like the NS-GF200RUB-D will only continue to grow. By meeting the strict RoHS and REACH environmental standards, Volsun ensures these components are ready for the green energy revolution.

The Challenge: Continuous UV Exposure and Environmental Stress

A solar EPC contractor in Southern Europe encountered recurring issues with cable joint degradation in an open-field solar farm. The installation was subject to intense sunlight during summer months, combined with daily temperature fluctuations and occasional rainfall. Over time, conventional sealing methods began to lose effectiveness, resulting in minor insulation failures and increased maintenance requirements.

The client needed a solution that could withstand long-term UV exposure while maintaining flexibility and sealing performance.

The Solution: UV-Stable Silicone Cold Shrink Tubing

Volsun provided a cold shrink tubing solution specifically suited for outdoor environments. The silicone rubber material offers excellent resistance to ultraviolet radiation, ensuring that it does not become brittle or lose elasticity over time. Its high elongation capability allows the tubing to conform tightly to different cable shapes, providing a consistent and uniform seal.

Another important benefit was the efficiency of installation. Since no heat or additional tools were required, technicians were able to complete installations more quickly across multiple sites. This was particularly valuable in a large-scale solar project where time and labor efficiency directly impact overall project costs.

The Result: Increased Efficiency and Long-Term Stability

After implementation, the cable connections demonstrated improved durability and sealing performance. Even after prolonged exposure to sunlight and environmental changes, the tubing maintained its flexibility and integrity. The contractor reported a reduction in installation time as well as fewer post-installation issues.

The improved reliability of cable joints contributed to more stable system performance, helping the client maintain consistent energy output. This project highlighted the importance of using materials specifically designed for long-term outdoor exposure in renewable energy applications.

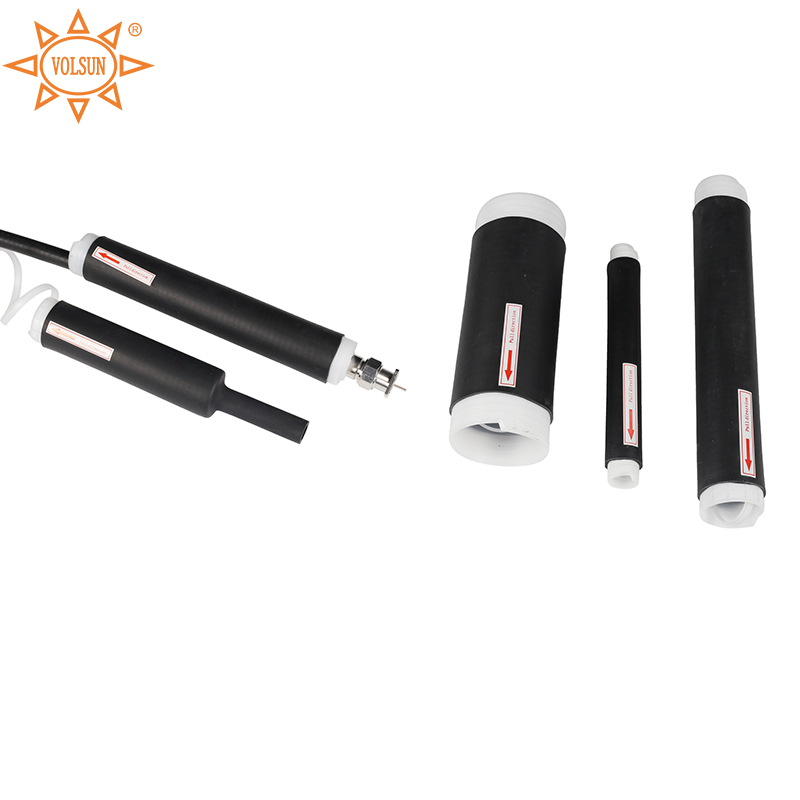

Cold shrink tubing has emerged as the gold standard for protecting these critical connections. Here is why it is the preferred choice for modern telecommunications infrastructure.

Why Choose Cold Shrink Over Heat Shrink?

Unlike traditional heat shrink solutions, cold shrink tubing requires no torches or specialized heat tools. This makes it significantly safer and more practical for technicians working on high towers or in confined, hazardous spaces.

The installation is remarkably efficient: once positioned over the connector, the internal plastic support core is unzipped. The pre-expanded silicone rubber then shrinks rapidly, creating a permanent, tight, and uniform seal around the cable.

Key Benefits for Telecom Infrastructure

• Constant Radial Pressure: The inherent elasticity of silicone ensures a "living seal" that expands and contracts with temperature changes, maintaining a moisture-proof barrier over the long term.

• Superior Material Durability: High-quality silicone, such as the range manufactured by Volsun, is engineered for extreme climates. With an operating temperature range of -60°C to 200°C, it remains flexible and resilient.

• Weather and UV Resistance: Designed specifically for outdoor use, it offers excellent resistance to ultraviolet radiation, ozone, and salt spray—ideal for coastal and high-altitude deployments.

• High Expansion Ratio: With a 4:1 or 5:1 expansion ratio, a single size of tubing can cover a wide range of cable diameters and connector shapes, reducing inventory complexity for field teams.

Driving Efficiency in 5G Rollouts

As global 5G expansion accelerates, the demand for robust, fast-install protection is surging. Cold shrink tubing minimizes human error and reduces installation time by up to 50% compared to manual taping or heat-shrink methods. For telecom operators, this translates to lower labor costs and significantly improved network stability.

Reliable Sealing Solutions by Volsun

For telecom contractors and system integrators seeking a dependable alternative to premium brands, Volsun provides professional-grade silicone cold shrink tubing designed for the most rigorous outdoor applications. Our products ensure that your infrastructure remains protected against the elements, today and for years to come.

Quick Answer

Shaft voltage in VFD-driven motors is mainly caused by high-frequency switching inside the drive. This switching generates common-mode voltage that induces electrical potential between the motor shaft and the frame. When the voltage becomes strong enough, it may discharge through the bearings unless a grounding path is provided.

Why Shaft Voltage Appears in VFD Systems

Modern industrial motors increasingly use Variable Frequency Drives (VFDs) to control speed and improve efficiency. While VFDs provide excellent performance benefits, they also introduce electrical effects that do not exist in traditional motor systems.

One of the most important of these effects is shaft voltage.

Because VFDs operate using high-frequency switching, the electrical waveform supplied to the motor is not a smooth sine wave. Instead, the inverter rapidly turns voltage on and off using pulse width modulation.

This switching process creates common-mode voltage, which can induce electrical charge on the motor shaft.

How Voltage Builds Up on the Shaft

Inside a motor, several components are electrically coupled through capacitance. These include:

• The stator windings
• The rotor
• The motor shaft
• The motor housing

In many cases, the bearing becomes the easiest path to ground.

Why Bearings Become the Discharge Path

Motor bearings sit directly between the rotating shaft and the grounded motor housing. The lubricant film inside the bearing acts as a temporary insulator, but once the voltage exceeds its insulation capability, the electrical charge discharges. These repeated discharges can damage the bearing surfaces over time.

Preventing Damage from Shaft Voltage

To prevent electrical current from passing through the bearing, engineers often install shaft grounding rings.

A grounding ring provides a low-resistance path that safely transfers stray electrical charge from the shaft to the motor frame. By diverting current away from the bearing, the risk of electrical damage is significantly reduced.

FAQ

1. Is shaft voltage unique to VFD motors?
It is most common in VFD-driven systems because of high-frequency switching.

2. Can shaft voltage damage bearings?
Yes, repeated electrical discharge can cause pitting or fluting.

3. How is shaft voltage usually controlled?
By installing grounding rings or other shaft grounding devices.

This is why silicone cold shrink tubing has become a widely trusted solution for cable insulation and sealing.

The Role of Cable Sealing in Electrical Systems

Effective cable sealing must provide three key functions:

How Silicone Cold Shrink Tubing Protects Cable Connections

Advantages of Silicone Rubber Material

• High Temperature Resistance

• Excellent UV and Weather Resistance

• Long-Term Elasticity

Applications-Silicone cold shrink tubing is widely used in many industries, including:

Selecting the Right Cold Shrink Tubing

The Hidden Enemy Inside Your VFD Motors

If your facility runs variable frequency drives, your motors face an invisible threat. Every time that drive switches power, it creates high-frequency voltage on the motor shaft. This voltage builds up until it finds the path of least resistance to ground. Unfortunately, that path is often through your bearings.

When voltage discharges across a bearing, it creates microscopic welding events called electrical discharge machining. You cannot see it happening. But over weeks and months, those tiny sparks melt pits into the bearing races. Eventually, you hear the noise, feel the vibration, and wonder why a relatively new motor failed.

Why Carbon Brushes Fall Short

For decades, the go-to solution was a carbon brush riding against the shaft. In theory, it provides a ground path. In practice, it creates new problems.

Common carbon brush headaches:

• Inconsistent contact means inconsistent protection
• Sparking creates ignition risks in dusty environments
• Carbon dust contaminates windings and bearings
• Rapid wear requires frequent replacement
• Single-point contact misses many discharge events

The industrial world needed something better. That something is the conductive microfiber ring.

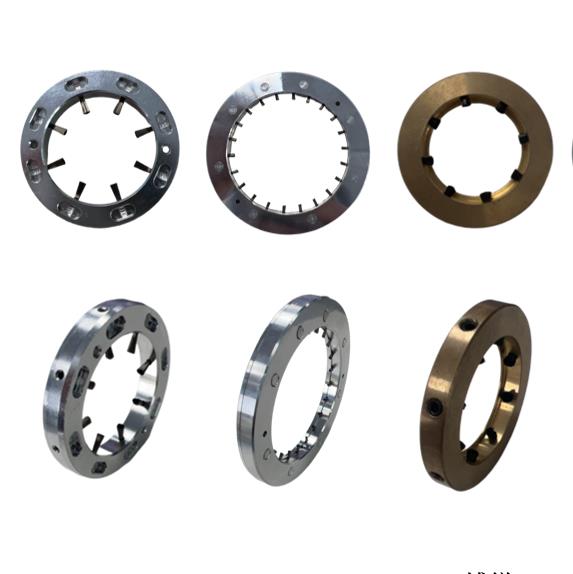

How Volsun's Third-Generation Shaft Grounding Ring Solves the Problem

Think of a Volsun grounding ring as a high-tech brush with thousands of contact points instead of just one. Dense conductive fibers surround the shaft completely, maintaining contact through every degree of rotation. This creates a continuous, low-impedance path that drains voltage before it can build to dangerous levels.

Volsun has refined this technology through collaboration with research institutions including the Chinese Academy of Sciences. The result is a metal-based carbon fiber forming process that delivers exceptional wear resistance and conductivity.

What happens inside a protected motor:

• Shaft voltage begins to build from VFD switching
• Conductive fibers provide an escape path
• Current flows safely to the motor frame
• Bearings never see damaging discharge events
• Lubricating oil film remains intact

Volsun designs for some harsh industrial environments, including motors run hot. dust fills the air. humidity fluctuates. When you need an AEGIS grounding ring alternative that performs under pressure, Volsun delivers. Facilities running conveyors, compressors, pumps, and fans report the same result: extended bearing life and reduced unplanned downtime.

The fibers maintain consistent contact without abrasion. They spark nowhere. They generate no debris. They simply do their job, day after day, keeping shaft voltage where it belongs—on the ground.

Making the Technology Work for You

Installation matters. For best results, ensure the shaft surface is clean and smooth at the contact point. Avoid heavy grease in the fiber contact zone. Confirm a solid ground path from the ring through the motor frame to earth ground.

Most installations place the ring at the motor endbell, though external mounting works well for retrofits where space is tight. Volsun's design flexibility accommodates both approaches.
