How High-Voltage Busbar Heat Shrink Tubing Enables Compact Switchgear Design
Time: 2026-04-16 16:02:47     Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.

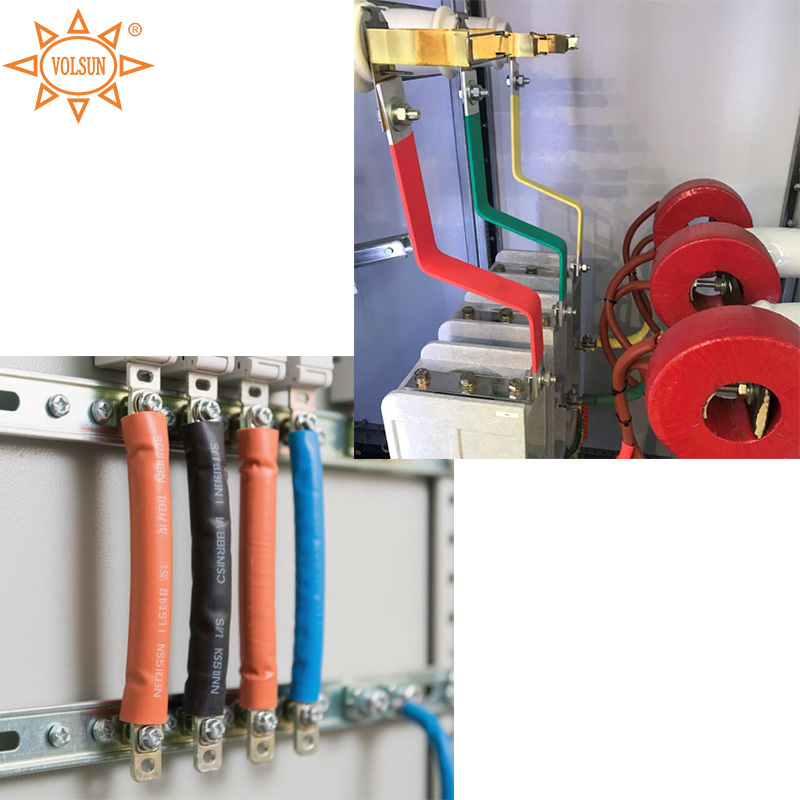

In the modern landscape of electrical infrastructure, "compactness" is no longer just a preference—it is a technical necessity. As urban centers become more densely populated and industrial facilities seek to maximize every square meter of floor space, power engineers are tasked with designing high-performance switchgear that occupies a minimal footprint. One of the most critical components in achieving this goal is the application of the Volsun MPRS series Busbar Heat Shrink Tubing.

The Dielectric Challenge of Air Gaps In a traditional uninsulated system, air serves as the primary dielectric medium. However, air has a relatively low dielectric strength, meaning that significant physical distances—known as air clearances—must be maintained between phases and to the ground to prevent electrical arcing or flashover. This requirement often leads to bulky, oversized switchgear cabinets. The MPRS series, made from radiation crosslinked polyolefin, changes this equation entirely. With a breakdown strength of more than 20kV/mm, these sleeves provide a high-performance insulating barrier that far exceeds the insulating properties of air.

Engineering the Compact Switchgear By applying the 10kV or 35kV MPRS sleeves, designers can effectively shorten the minimum safety distance between systems. This reduction in phase spacing allows for:

• Significant Cabinet Downsizing: Smaller enclosures lead to lower material costs for steel and copper, easier transportation, and simpler installation in cramped urban substations.
• Enhanced Operational Safety: Even in tighter configurations, the material’s resistance to electric carbon marks ensures that the risk of surface tracking and flashover is minimized.
• Reliability Under Load: These sleeves are designed to perform in demanding environments, with an operating temperature range of -55C to 125C.

Technical Integrity for Long-Term Use

The engineering logic is clear: when you increase the dielectric strength of the busbar surface, you decrease the necessary volume of the cabinet. Volsun’s MPRS-35KV, for instance, is specifically suitable for high-voltage equipment bus insulation protection. By choosing a product with a volume resistivity of 10¹⁴Ω.cm, engineers ensure that the insulation remains a permanent, reliable barrier throughout the lifecycle of the switchgear. For the modern grid, MPRS tubing is the strategic choice for combining safety with spatial efficiency.
