Military Grade, Fluid Resistant at High Temperature, Heat Shrinkable

MSVLO
  • Fluid resistance at 70°C/158°F for 168h, such as JP-8 fuel oil, temperature rating 135°C /275°F
  • High temperature resistant, rated temperature, 135°C
  • Highly flame retardant, VW-1
  • ROHS compliant
  • High reliability, permanent identification
  • Heat sensitive, swift recovery
  • Computer-printable, any characters and logo are easy to design
    • Detailed

    Military Grade, Fluid Resistant at High Temperature, Heat Shrinkable Identification Sleeves



    Description


    MSVLO series is military grade cable and wire identification sleeves, which is designed to meet the requirements of outstanding oil resistance. It is made of cross-linked environmentally friendly polyolefin bombarded by high power electron beam with electronic accelerators to meet high end markets where highly reliable cable& wire identification is required. MSVLO conforms to Classes 1 and 3 of AMS-DTL-23053/6, half-hard high molecular materials. Shrink ratios, both 2:1 and 3:1 are available. See below tables. MSVLO boasts amazingly high fluid resistance at high temperature for long time like JP-8 used for aviation fuel oil. It is widely used in aviation and spaceships, high speed rails EMU, submarine as well as other military and architecture industries.



    Features


    ● Fluid resistance at 70°C/158°F for 168h, such as JP-8 fuel oil, temperature rating 135°C /275°F

     High temperature resistant, rated temperature, 135°C

     Highly flame retardant, VW-1

     ROHS compliant

     High reliability, permanent identification

     Heat sensitive, swift recovery

     Computer-printable, any characters and logo are easy to design



    Rated Temperature


     Continuous operating temperature: -55°C~135°C /-67°F~275°F

     Min. shrink temperature: 85°C /+185°F

     Full recovery temperature: 115°C~200°C /239°F~392°F, 8~3minutes

     Max. storage and transportation temperature: ≤50°C /122°F



    Standards


     Meets AMS-DTL-23053/5, compatibility: UL224

     Color code soundness: SAE-AS 81531 and MIL-STD-202F/215J



    Structure



    Technical Performance


    Properties

    Indicator

    Test Method

    Specific Property

    Unit

    States

    Tensile Strength

    Mpa

    Unaged

    13.8

    ASTM G 154,MIL-DTL-23053E

    ISO 37,500mm/min

    175°C,168h,ISO 188

    Heat aged/After fluid UV aged

    11.1

    Elongation at break

    %

    Unaged

    200

    Heat aged/After fluid

    100

    Secent Modulus

    Mpa

    Unaged

    173

    ASTM D 882

    Voltage Withstand

    V

    Unaged/After aged

    2500V,No breakdown in 60 sec.

    IEC 243,ASTM G 154

    175°C,168h,ISO 188

    Dielectric Strength

    MV/m

    Before ageing

    19.7

    Heat Aged/After fluidUV aged

    15.8

    Volume Resistivity

    Ω.cm

    Unaged

    1014

    IEC 93

    Dielectric Constant

    -

    Unaged

    3.2

    ASTM 150

    Water Absorption

    -

    Unaged

    0.5

    ASTM 570,23°C,24h

    Bare Copper Corrosion

    -

    Unaged

    No corrosion

    23°C,Rh 95±5%,24h

    175°C,16h

    Heat Shock

    -

    Unaged

    No cracks, flowing, dripping

    Wind to specified mandrel225°C,4h

    Cold Flexibility

    -

    Unaged

    No cracks

    Wind to specified mandrel-30°C,1h

    Flammability

    -

    Unaged

    VW-1

    IEC 60332-1-3 Ed.1.0 b:2004

    Longitudinal Change

    %

    Unaged

    2X-10~+1

    200°C,constant temperature 3min

    3X-15~+5

    Smoke Density

    -

    Unaged

    -

    DIN 5510-2

    Toxicity Index

    -

    Unaged

    -

    BS 6853:1999 Appendix B

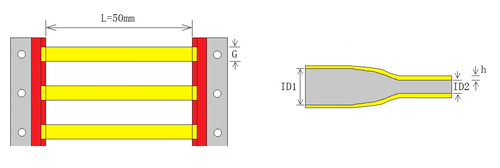

    Dimensions(2:1)


    Order Description

    Expanded As Supplied(mm)

    Recovered After Heating(mm)

    Inner Diameter ID1

    Flatten width G

    Dual Wall Thickness H

    Inner DiameterID2

    Single Wall Thickness h

    MSVLO-2X-1.6/

    2.00±0.20

    3.7±0.3

    0.48±0.10

    0.79

    0.45±0.06

    MSVLO-2X-2.4/

    2.79±0.20

    5.0±0.3

    0.48±0.10

    1.18

    0.49±0.06

    MSVLO-2X-3.2/

    3.64±0.23

    6.3±0.4

    0.48±0.10

    1.59

    0.51±0.06

    MSVLO-2X-4.8/

    5.26±0.25

    8.9±0.4

    0.49±0.10

    2.36

    0.54±0.06

    MSVLO-2X-6.4/

    6.92±0.28

    11.5±0.4

    0.50±0.10

    3.18

    0.56±0.06

    MSVLO-2X-9.5/

    10.2±0.32

    16.7±0.5

    0.51±0.11

    4.75

    0.59±0.06

    MSVLO-2X-12.7/

    13.5±0.36

    21.8±0.6

    0.52±0.11

    6.35

    0.60±0.07

    MSVLO-2X-19/

    20.1±0.40

    32.2±0.6

    0.53±0.11

    9.53

    0.62±0.07

    MSVLO-2X-25/

    26.7±0.45

    42.5±0.7

    0.55±0.12

    12.7

    0.63±0.07

    MSVLO-2X-38/

    39.8±0.51

    63.2±0.8

    0.57±0.12

    19.1

    0.64±0.07

    MSVLO-2X-51/

    53.0±0.56

    83.9±0.9

    0.58±0.13

    25.4

    0.64±0.08

    MSVLO-2X-76/

    79.4±0.56

    125.3±1.0

    0.59±0.13

    38.1

    0.64±0.09



    Dimensions(3:1)


    Order Description

    Expanded As Supplied (mm)

    Recovered After Heating (mm)

    Internal Diameter ID1

    Flatten Width G

    Dual Wall Thickness H

    Inner Diameter ID2

    Single Wall Thickness h

    MSVLO-3X-1.6/

    2.00±0.20

    3.7±0.3

    0.47±0.10

    0.53

    0.52±0.06

    MSVLO-3X-2.4/

    2.79±0.20

    5.0±0.3

    0.47±0.10

    0.79

    0.57±0.06

    MSVLO-3X-3.2/

    3.64±0.23

    6.3±0.4

    0.48±0.10

    1.06

    0.61±0.06

    MSVLO-3X-4.8/

    5.26±0.25

    8.9±0.4

    0.49±0.10

    1.59

    0.67±0.06

    MSVLO-3X-6.4/

    6.92±0.28

    11.5±0.4

    0.50±0.10

    2.36

    0.71±0.06

    MSVLO-3X-9.5/

    10.2±0.32

    16.7±0.5

    0.52±0.11

    3.18

    0.77±0.06

    MSVLO-3X-12.7/

    13.5±0.36

    21.8±0.6

    0.53±0.11

    4.75

    0.80±0.07

    MSVLO-3X-19/

    20.1±0.40

    32.2±0.6

    0.55±0.11

    6.35

    0.84±0.07

    MSVLO-3X-25/

    26.7±0.45

    42.5±0.7

    0.56±0.12

    8.47

    0.86±0.07

    MSVLO-3X-38/

    39.8±0.51

    63.2±0.8

    0.57±0.12

    12.9

    0.89±0.07

    MSVLO-3X-51/

    53.0±0.56

    83.9±0.9

    0.57±0.13

    17.2

    0.90±0.08

    MSVLO-3X-76/

    79.4±0.56

    125.3±1.0

    0.59±0.13

    25.8

    0.92±0.09



    Standard Packaging Data


    No.

    Sizes

    Packaging (Pcs/Reel)

    Box 210

    Box 146

    1

    Φ1.6

    2500

    250

    2

    Φ2.4

    2500

    250

    3

    Φ3.2

    2000

    250

    4

    Φ4.8

    2000

    250

    5

    Φ6.4

    1500

    250

    6

    Φ9.5

    1000

    250

    7

    Φ12.7

    500

    250

    8

    Φ19

    500

    250

    9

    Φ25

    500

    250

    10

    Φ38

    250

    250

    11

    Φ51

    250

    250

    12

    Φ76

    250

    250
