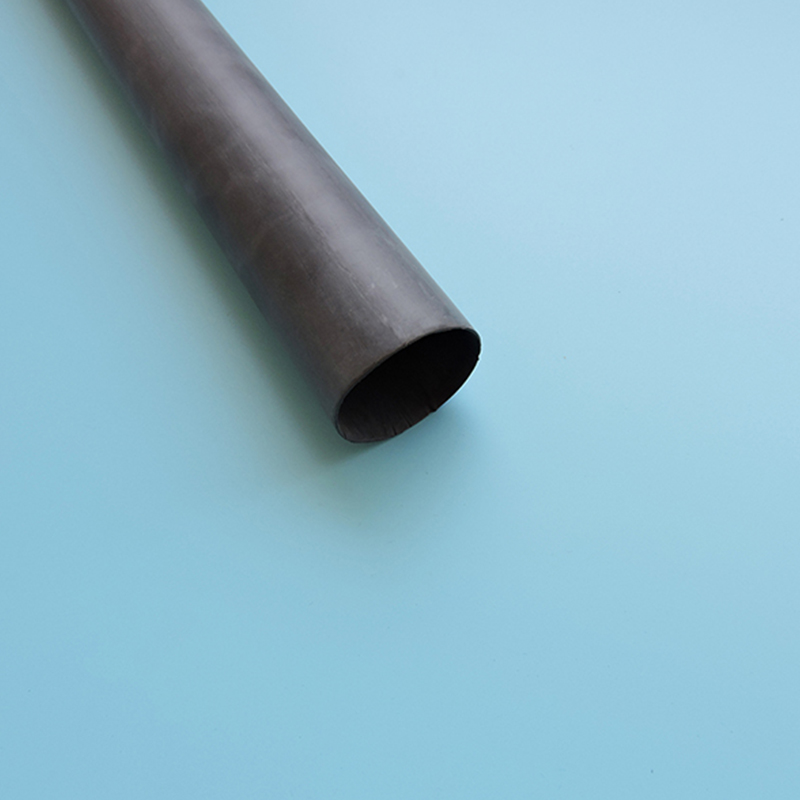

Flame Retardant Heavy Wall Heat Shrink Tubing(without adhesive)

HBWJ-125G(3.5X)
  • Flame retardant, environmental friendly
  • Min shrink temperature: 80°C
  • Min. full recovery temperature: 120°C
  • Continuous operating temperature: -55°C ~125°C
  • Shrink ratio: 3.5:1
  • .
  • RoHS compliant
  • .
  • Standard color: black, more colors are available upon request
    • Detailed

    Flame Retardant Heavy Wall Heat Shrink Tubing(without adhesive)


    Description


    HBWJ-125G (3.5X)Flame retardant heat shrink tubing is made of polyolefin materials whose properties are modified through special ionizing radiation process with electronic accelerators. It is flame retardant and highly insulating with a relatively thicker wall than normal single wall tubing. This product is found in many applications esp. flame retardant requiring conditions like insulation and protection for high voltage cable middle connections, terminations and busbar as well as different kinds of pipelines for its excellent corrosion resistance, abrasion resistance.



    Features


    ● Flame retardant, environmental  friendly

    ● Min shrink temperature: 80°C

    ● Min. full recovery temperature: 120°C

     Continuous operating temperature: -55°C ~125°C

    ● Shrink ratio: 3.5:1 .

    ● RoHS compliant .

    ● Standard color: black, more colors are available upon request


    Technical Performance


    Properties

    Typical Data

    Test Method

    Tensile strength

    14MPa

    ASTM D 2671

    Elongation

    400%

    ASTM D 2671

    Tensile strength after heat ageing

    12MPa

    158℃ ×168h

    Elongation after heat ageing

    300%

    158℃ ×168h

    Longitudinal change

    0~-10%

    ASTM D 2671

    Flammability

    Outer layer, self-extinguish in 30 sec.

    UL224

    Dielectric

    18kv/mm

    IEC 60243

    Volume resistivity

    1014Ω.cm

    IEC 60093



    Structure:




    Dimensions


    Size

    As suppplied D(mm)

    Recovered(mm)

    Standard Package

    Internal diameter d

    Wall thickness  (mm) w

    (m/pc)

    Φ8.0/2.0

    ≥8.0

    ≤2.0

    ≥2.0

    1.00~1.50

    Φ9.0/3.0

    ≥9.0

    ≤3.0

    ≥2.0

    1.00~1.50

    Φ13.0/4.0

    ≥13.0

    ≤4.0

    ≥2.5

    1.00~1.50

    Φ16.0/5.0

    ≥16.0

    ≤5.0

    ≥2.5

    1.00~1.50

    Φ19.0/5.0

    ≥19.0

    ≤5.0

    ≥2.5

    1.00~1.50

    Φ22.0/6.0

    ≥22.0

    ≤6.0

    ≥2.7

    1.00~1.50

    Φ25.0/6.0

    ≥25.0

    ≤6.0

    ≥2.7

    1.00~1.50

    Φ28.0/6.0

    ≥28.0

    ≤6.0

    ≥2.7

    1.00~1.50

    Φ33.0/8.0

    ≥33.0

    ≤8.0

    ≥3.2

    1.00~1.50

    Φ35.0/8.0

    ≥35.0

    ≤8.0

    ≥3.2

    1.00~1.50

    Φ40.0/12.0

    ≥40.0

    ≤12.0

    ≥4.1

    1.00~1.50

    Φ45.0/12.0

    ≥40.0

    ≤12.0

    ≥4.1

    1.00~1.50

    Φ55.0/16.0

    ≥55.0

    ≤16.0

    ≥4.1

    1.00~1.50

    Φ65.0/19.0

    ≥65.0

    ≤19.0

    ≥4.1

    1.00~1.50

    Φ75.0/22.0

    ≥75.0

    ≤22.0

    ≥4.1

    1.00~1.50

    Φ85.0/25.0

    ≥85.0

    ≤25.0

    ≥4.1

    1.00~1.50

    Φ95.0/30.0

    ≥95.0

    ≤30.0

    ≥4.3

    1.00~1.50

    Φ105.0/30.0

    ≥105.0

    ≤30.0

    ≥4.3

    1.00~1.50

    Φ115.0/34.0

    ≥115.0

    ≤34.0

    ≥4.3

    1.00~1.50

    Φ130.0/36.0

    ≥130.0

    ≤36.0

    ≥4.3

    1.00~1.50

    Φ140.0/42.0

    ≥140.0

    ≤42.0

    ≥4.3

    1.00~1.50

    Φ160.0/50.0

    ≥160.0

    ≤50.0

    ≥4.3

    1.00~1.50

    Φ180.0/50.0

    ≥180.0

    ≤50.0

    ≥4.3

    1.00~1.50

    Φ200.0/60.0

    ≥200.0

    ≤60.0

    ≥4.3

    1.00~1.50

    Φ235.0/65.0

    ≥235.0

    ≤65.0

    ≥4.5

    1.00~1.50

    Φ265.0/75.0

    ≥265.0

    ≤75.0

    ≥4.5

    1.00~1.50

    Φ300.0/85.0

    ≥300.0

    ≤85.0

    ≥4.5

    1.00~1.50

    Φ350.0/100.0

    ≥350.0

    ≤100.0

    ≥4.5

    1.00~1.50


    Note: Non-standard dimensions and package are available on request
