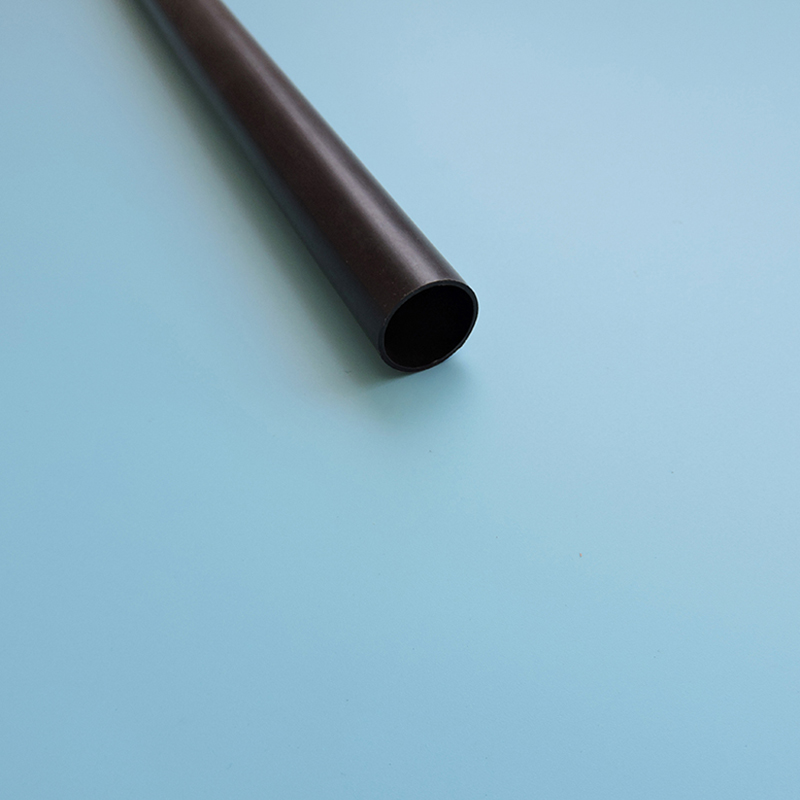

Semi rigid Heavy Wall Heat Shrink Tubing(Without adhesive inside)

HBWJ-110G (3.5X) NF
  • Semi rigid, non flame retardant, environment friendly
  • Min. shrink temperature: 80°C
  • Min full recovery temperature: 120°C
  • Continuous operating temperature: -55℃~110°C
  • Shrink ratio: 3.5:1
  • RoHS compliant.
  • Standard color: black. More colors are available upon request
    • Detailed

    Semi rigid Heavy Wall Heat Shrink Tubing(Without adhesive inside)


    Description


    HBWJ-110G (3.5X) NF Semirigid heavy wall heat shrink tubing is made of polyolefin materials whose properties are modified through special radiation process with electronic accelerators as the outer layer and hot melt adhesive as the inner layer. This product is specially designed to provide insulation and protection for high voltage cable middle connections, terminations and various busbars and for other corrosion resistant, moisture-proof and sealing purposes.




    Features


    ● Semi rigid, non flame retardant, environment friendly

    ● Min. shrink temperature: 80°C

     Min full recovery temperature: 120°C

     Continuous operating temperature:  -55~110°C

     Shrink ratio: 3.5:1

     RoHS compliant.

     Standard color: black. More colors are available upon request



    Technical Performance


    Properties

    Typical Data

    Test Method

    Tensile strength

    14MPa

    ASTM D 2671

    Elongation

    400%

    ASTM D 2671

    Tensile strength after heat ageing

    12MPa

    150℃ ×168h

    Elongation after heat ageing

    300%

    150℃ ×168h

    Longitudinal change

    0~-10%

    ASTM D 2671

    Flammability

    Non flame retardant

    -

    Dielectric strength

    18kV/mm

    IEC 60243

    Volume resistivity

    1013Ω.cm

    IEC 60093



    Structure





    Dimensions


    Size(mm)

    As supplied D(mm)

    Recovered(mm)

    Standard package

    Internal diameter d

    Wall thickness

    w

    (M/Pcs)

    Φ9.0/3.0

    ≥9.0

    ≤3.0

    ≥1.8

    1.00~1.50

    Φ13.0/4.0

    ≥13.0

    ≤4.0

    ≥2.4

    1.00~1.50

    Φ22.0/6.0

    ≥22.0

    ≤6.0

    ≥2.7

    1.00~1.50

    Φ33.0/8.0

    ≥33.0

    ≤8.0

    ≥3.2

    1.00~1.50

    Φ40.0/12.0

    ≥40.0

    ≤12.0

    ≥4.1

    1.00~1.50

    Φ45.0/12.0

    ≥45.0

    ≤12.0

    ≥4.1

    1.00~1.50

    Φ55.0/16.0

    ≥55.0

    ≤16.0

    ≥4.1

    1.00~1.50

    Φ75.0/22.0

    ≥75.0

    ≤22.0

    ≥4.1

    1.00~1.50

    Φ85.0/25.0

    ≥85.0

    ≤25.0

    ≥4.3

    1.00~1.50

    Φ95.0/30.0

    ≥95.0

    ≤30.0

    ≥4.3

    1.00~1.50

    Φ105.0/30.0

    ≥105.0

    ≤30.0

    ≥4.3

    1.00~1.50

    Φ115.0/34.0

    ≥115.0

    ≤34.0

    ≥4.3

    1.00~1.50

    Φ130.0/36.0

    ≥130.0

    ≤36.0

    ≥4.3

    1.00~1.50

    Φ160.0/50.0

    ≥160.0

    ≤50.0

    ≥4.3

    1.00~1.50

    Φ180.0/50.0

    ≥180.0

    ≤50.0

    ≥4.3

    1.00~1.50

    Φ200.0/60.0

    ≥200.0

    ≤60.0

    ≥4.3

    1.00~1.50

    Φ235.0/65.0

    ≥235.0

    ≤65.0

    ≥4.5

    1.00~1.50

    Φ265.0/75.0

    ≥265.0

    ≤75.0

    ≥4.5

    1.00~1.50

    Φ300.0/85.0

    ≥300.0

    ≤85.0

    ≥4.5

    1.00~1.50

    Φ350.0/100.0

    ≥350.0

    ≤100.0

    ≥4.5

    1.00~1.50


    Note: Non-standard dimensions and package are available on request
