MPPB Busbars Connections Junction Box

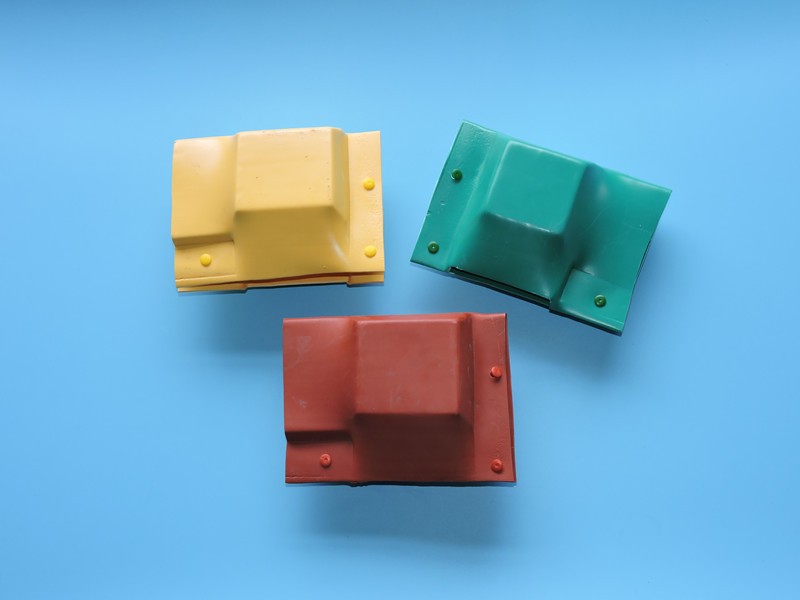

  • DSCN4424_副本.jpg
  • MPPB Busbars Connections Junction Box
Standard:GB/T 1059-2007 Low Smoke, Soft, Flame Retardant, High Intensity, Electric and Carbon Mark Resistant ROHS Compliant Standard colors:Red, Yellow, Green, More colors are available upon request.
  • Detailed

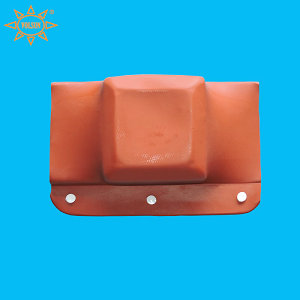

MPPB Busbars Connections Junction Box


Description


MPPB is made of cross-linked polyolefin material with excellent physical and electrical properties. The junction box is an insulation material for heat shrink busbar connection with voltage up to 36KV, shape types ‘I’ ‘T’ ‘L’ etc. The product properties including electric insulation, solder joint rust corrosion, mechanical protection, and space reduce, etc. It is widely used in electronics, communication, machinery, manufacture industry.


Features


● Standard:GB/T 1059-2007

● Low Smoke, Soft, Flame Retardant, High Intensity, Electric and Carbon Mark Resistant

● ROHS Compliant

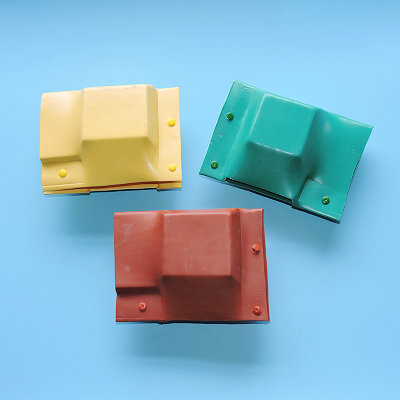

● Standard colors:Red, Yellow, Green, More colors are available upon request.


Technical Performance

Property

Typical Data

Test method/condition

Tensile Strength

8.0MPa

ASTM D 2671

Elongation at break

300%

ASTM D 2671

Tensile strength after heat aging

6.9MPa

130×168h

Elongation after heat aging

100%

130×168h

Flammability(Oxygen index)

28

GB/T 2406

Heat Shock

No tracks

JB 7829  Appendix D

Dielectric Strength

20kv/mm

ASTM D 149

SteengthShore A

90

GB2411

Volume Resistivity

1014Ω.cm

IEC 60093





Specification

Item

Models

Item

Models

Item

Models

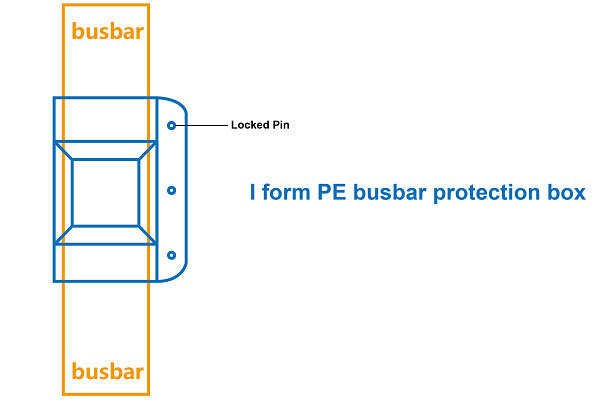

Straight

Through

Type

connector

I30X30X60

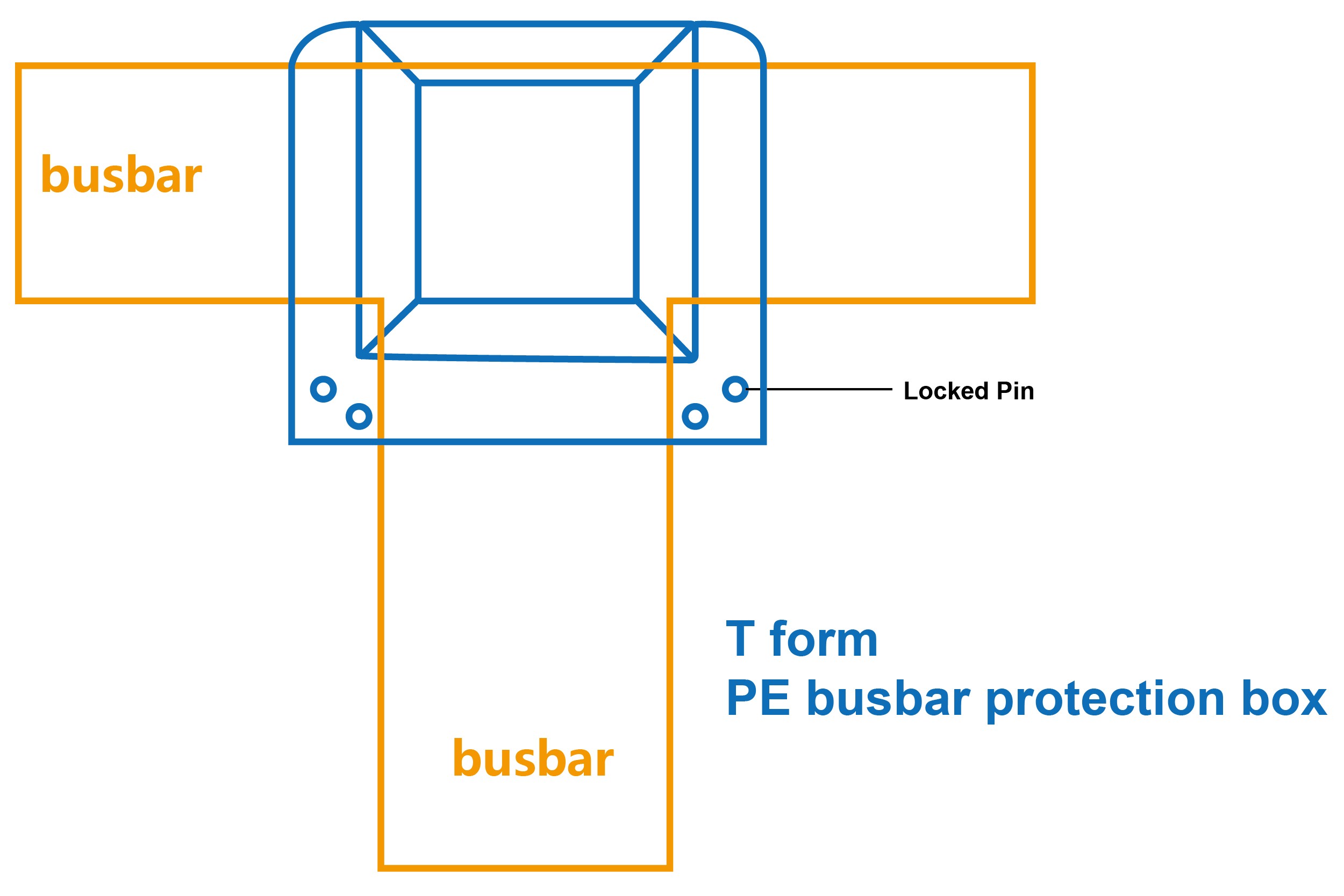

T joint

T30X30X60









L joint

L30X30X60

I40X40X60

T40X40X60

L40X40X60

I50X50X60

T50X50X60

L50X50X60

I60X60X60

T60X60X60

L60X60X60

I80X80X80

T80X80X80

L80X80X80

I100X100X60

T100X100X60

L100X100X60

I120X120X60

T120X120X60

L120X120X60

I150X150X60

T150X150X60

L150X150X60

Note: Other nonstandard dimensions and packages are available on your request.
