Polyurethane Fiberglass Sleeving
- NS-PUGF
- Continuous operating temperature:-30°C~150°C
- RoHS compliant
- Standard Color: White, Amber. More colors are available upon request.
- Detailed
NS-PUGF

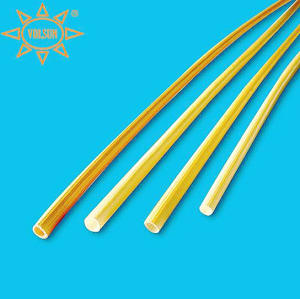

Polyurethane Fiberglass Sleeving (PU Fiberglass Sleeving)
Description
PU fiberglass sleeving is non-alkali fiberglass braided, which is coated polyurethane resin and treated in high temperature (temperature resistance can up to 150°C). PU fiberglass sleeving possesses reliable heat resistance and good electrical performance. It can be used for wiring insulation and mechanic protection for F grade electrical machinery and electric appliances.
Features
- Continuous operating temperature:-30°C~150°C
- RoHS compliant
- Standard Color: White, Amber. More colors are available upon request.
Structure
Dimensions
|
ID (mm) |
W(mm) |
Package (m/spool) |
||
|
Size |
Tolerance |
Min. |
Max |
|
|
0.5 |
±0.15 |
0.35 |
0.65 |
200 |
|
0.8 |
±0.20 |
0.35 |
0.65 |
200 |
|
1.0 |
±0.20 |
0.35 |
0.65 |
200 |
|
1.5 |
±0.20 |
0.35 |
0.65 |
200 |
|
2.0 |
±0.20 |
0.35 |
0.65 |
200 |
|
2.5 |
±0.20 |
0.35 |
0.65 |
200 |
|
3.0 |
±0.25 |
0.35 |
0.65 |
200 |
|
3.5 |
±0.25 |
0.35 |
0.65 |
200 |
|
4.0 |
±0.25 |
0.35 |
0.65 |
200 |
|
4.5 |
±0.25 |
0.35 |
0.65 |
100 |
|
5.0 |
±0.25 |
0.35 |
0.65 |
100 |
|
6.0 |
±0.25 |
0.35 |
0.65 |
100 |
|
7.0 |
±0.25 |
0.35 |
0.65 |
100 |
|
8.0 |
±0.30 |
0.50 |
0.90 |
100 |
|
9.0 |
±0.30 |
0.50 |
0.90 |
100 |
|
10.0 |
±0.30 |
0.50 |
0.90 |
100 |
|
12.0 |
±0.30 |
0.50 |
0.90 |
100 |
|
14.0 |
±0.50 |
0.50 |
1.00 |
100 |
|
16.0 |
±0.50 |
0.50 |
1.00 |
100 |
|
18.0 |
±0.50 |
0.50 |
1.00 |
100 |
|
20.0 |
±0.50 |
0.50 |
1.00 |
100 |
|
22.0 |
±0.60 |
0.50 |
1.50 |
50 |
|
24.0 |
±0.60 |
0.50 |
1.50 |
50 |
|
25.0 |
±0.60 |
0.50 |
1.50 |
25 |
|
30.0 |
±0.60 |
1.00 |
2.00 |
25 |
|
35.0 |
±0.60 |
1.00 |
2.00 |
20 |
|
40.0 |
±0.60 |
1.00 |
2.00 |
20 |
|
45.0 |
±0.60 |
1.00 |
2.00 |
20 |
|
50.0 |
±0.60 |
1.00 |
2.00 |
20 |
Remark:
Special size and package could be customized
