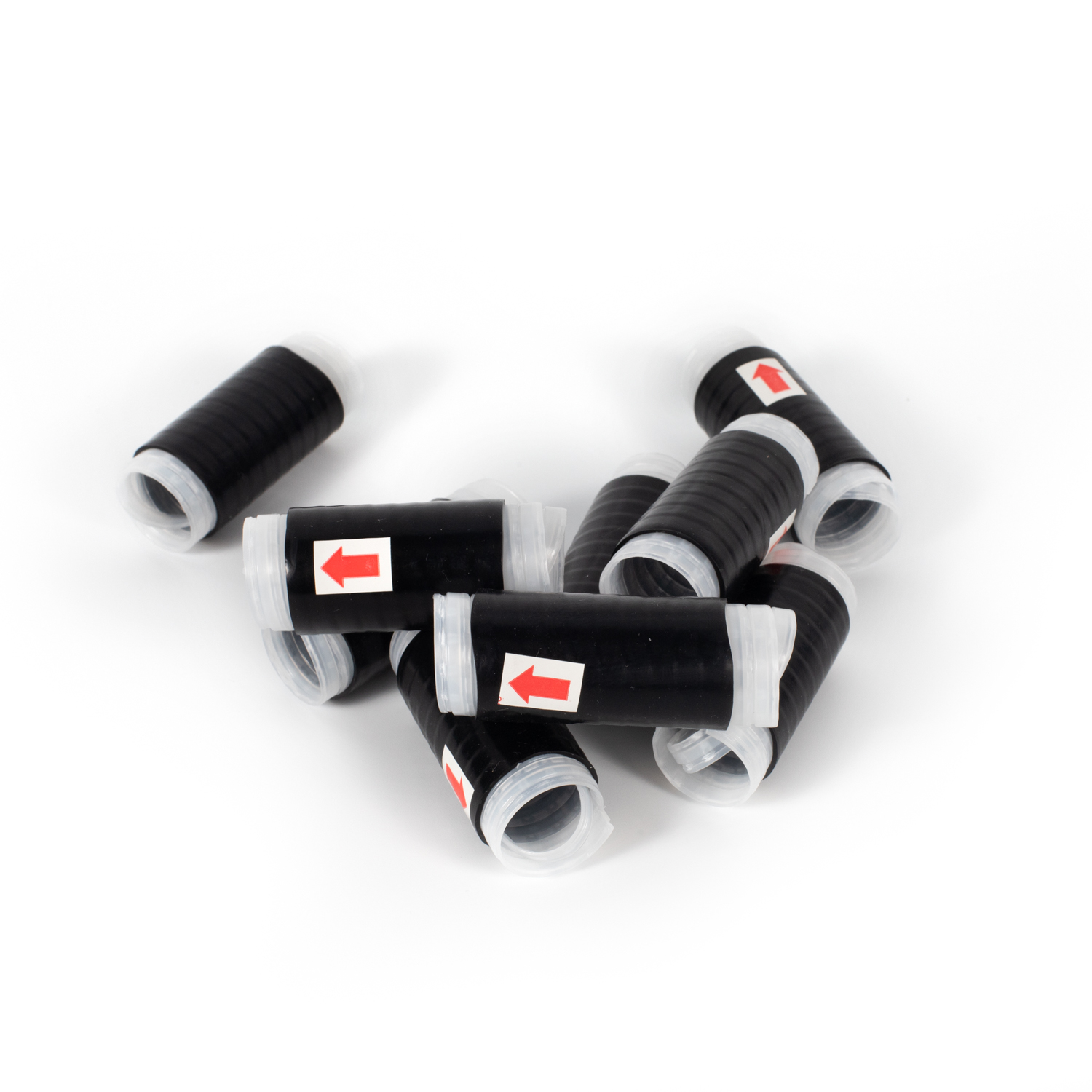

Volsun high shrink ratio 5:1 cold shrink tube

  • Detailed
Description

RUBLS-SILIC, Factory Direct Rubber Cold Shrink Tube, is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. It reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections etc.

Selected Guide




Unique Advantages

1. Continuous operating temperature:-60°C~200°C
2. Shrink Ratio :4:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
3. Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
4. Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
5. Excellent tear resistance
6. Simple installation, requires no special heating tools , and adhesive to seal the connections
7. Standard color: Red,pink

Technical Data

Properties

Typical Data

Test method

HS

45A

ASTM D 2240-75

Tensile Strength

9.8 MPa

ASTM D412-75

Elongation at break

840%

ASTM D412-75

Tear Strength

39 N/ mm

ASTM D624C-73

Dielectric Strength

23kV/mm

ASTM 149-75

Volume Resistivity

9×1015Ω.cm

ASTM D 257




Dimensions


Size
(mm)


Inner Diameter D(mm)

Min Cable Outer Diameter  (mm)

Max Cable Outer Diameter (mm)

Recovered Length L(mm)

VS28-1.4

28

6.0

25.0

36

VS28-1.7

28

6.0

25.0

43

VS28-5

28

6.0

25.0

130

VS28-6

28

6.0

25.0

150

VS32-2.2

32

10.5

27.0

57

VS32-5

32

10.5

27.0

130

VS32-7

32

10.5

27.0

178

VS32-8

32

10.5

27.0

203

VS32-9

32

10.5

27.0

229

VS32-11

32

10.5

27.0

279

VS32-12

32

10.5

27.0

305

VS35-5

35

10.5

30.0

130

VS35-7

35

10.5

30.0

178

VS35-8

35

10.5

30.0

203

VS35-9

35

10.5

30.0

229

VS35-11

35

10.5

30.0

279

VS35-12

35

10.5

30.0

305

VS42-6

42

12.0

36.0

150

VS42-7

42

12.0

36.0

178

VS42-8

42

12.0

36.0

203

VS42-9

42

12.0

36.0

229

VS42-11

42

12.0

36.0

279

VS42-12

42

12.0

36.0

300

VS45-6

45

13.5

39.0

150

VS45-7

45

13.5

39.0

178

VS45-8

45

13.5

39.0

203

VS45-9

45

13.5

39.0

229

VS45-11

45

13.5

39.0

279

VS45-12

45

13.5

39.0

300

VS50-6

50

18.0

45.0

150

VS50-7

50

18.0

45.0

178

VS50-8

50

18.0

45.0

203

VS50-9

50

18.0

45.0

229

VS50-11

50

18.0

45.0

279

VS50-12

50

18.0

45.0

300

VS58-6

58

18.0

51.0

150

VS58-7

58

18.0

51.0

178

VS58-8

58

18.0

51.0

203

VS58-9

58

18.0

51.0

229

VS58-11

58

18.0

51.0

279

VS58-12

58

18.0

51.0

300

VS68-6

68

22.0

63.0

150

VS68-7

68

22.0

63.0

178

VS68-8

68

22.0

63.0

203

VS68-9

68

22.0

63.0

229

VS68-11

68

22.0

63.0

279

VS68-14

68

22.0

63.0

350




































































More detail please contact us by volsuntube.com
