F Class Insulation Acrylic Fiberglass Sleeve Glass Fiber Sleeve
- 1.Operating temperature：-30℃～155℃ 2.Environmental protection standard: RoHS 3.Standard color: White, other colors can be customized
- Detailed
Description

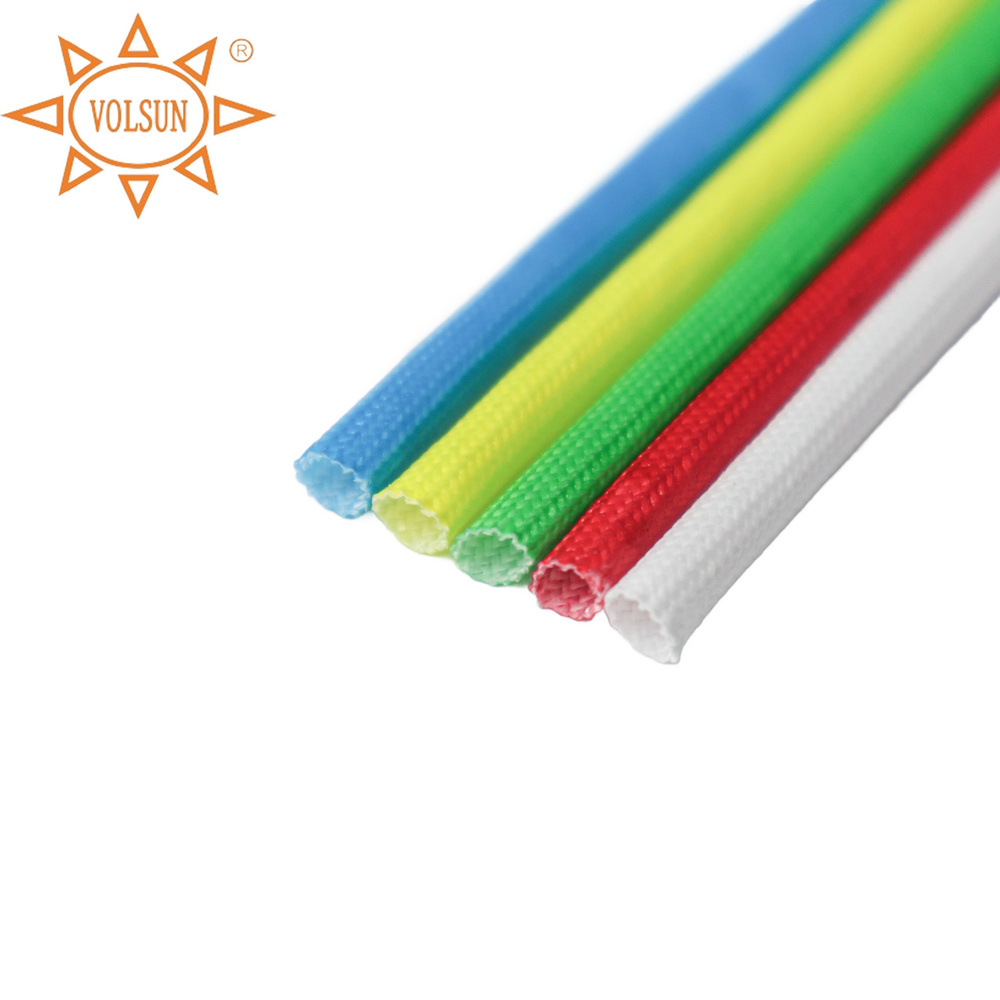

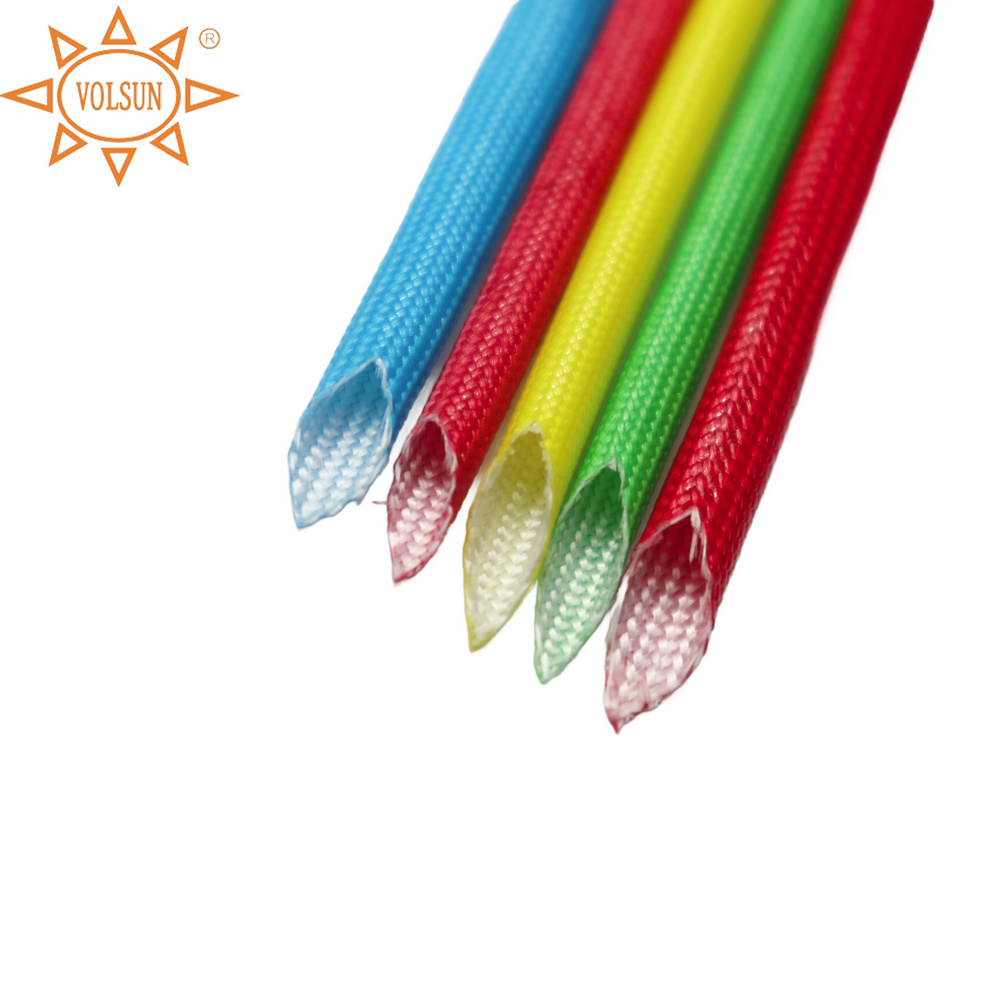

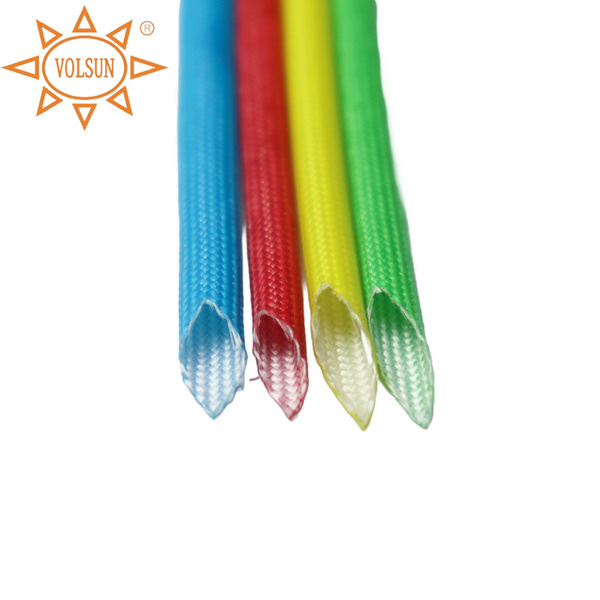

Acrylic Fiberglass Sleeve are braided with alkali-free glass fiber and coated with insulating paint tube made of modified acrylic resin by heating and drying. It has reliable heat resistance, good insulation performance, good flexibility and elasticity, and is suitable for wiring insulation and mechanical protection of motors, electrical appliances, meters, radios, household appliances and other devices.
Technical Performance
|
Item |
Typical Data |
Test method |
|
Appearance |
The coating should be uniform, the surface should be smooth, and there should be no defects that affect product performance |
GB/T 7113.4-2011 |
|
Insulation resistance (Ω) |
≥1.0*109 |
GB/T 7113.2-2014 |
|
Resistance to welding heat |
Pass (only for hose with nominal inner diameter ≤5mm) |
GB/T 7113.2-2014 |
|
Bendability after heating |
No visible cracks or peeling of the coating, allowing the color to become darker |
GB/T 7113.2-2014 |
|
Bendability at low temperatures |
No visible cracks or peeling of the coating (experimental temperature: ≤-15 ~ -18℃) |
GB/T 7113.2-2014 |
|
Paint resistance to hydrolysis |
No coating migration, no adhesion between the hose and the paper and the hose test piece, and no discoloration of the paper |
GB/T 7113.2-2014 |
|
Breakdown voltage |
See reference standard |
GB/T 7113.2-2014 |
Dimensions
|
Size |
ID d(mm) |
Thickness w(mm) |
Package(M/Roll) |
||||
|
1.2KV |
1.5KV |
2.5KV |
4.0KV |
7KV |
|||
|
Φ0.8 |
+0.20mm |
0.20±0.05mm |
0.20±0.05mm |
0.40±0.15mm |
0.40±0.15mm |
0.55±0.15mm |
200 |
|
Φ1.0 |
+0.20mm |
0.20±0.05mm |
0.20±0.05mm |
0.40±0.15mm |
0.40±0.15mm |
0.55±0.15mm |
200 |
|
Φ1.5 |
+0.20mm |
0.20±0.05mm |
0.20±0.05mm |
0.40±0.15mm |
0.40±0.15mm |
0.55±0.15mm |
200 |
|
Φ2.0 |
+0.20mm |
0.20±0.05mm |
0.20±0.05mm |
0.40±0.15mm |
0.40±0.15mm |
0.55±0.15mm |
200 |
|
Φ2.5 |
+0.25mm |
0.25±0.05mm |
0.25±0.05mm |
0.40±0.15mm |
0.40±0.15mm |
0.55±0.15mm |
200 |
|
Φ3.0 |
+0.35mm |
0.30±0.05mm |
0.30±0.05mm |
0.50±0.15mm |
0.50±0.15mm |
0.60±0.15mm |
200 |
|
Φ3.5 |
+0.35mm |
0.35±0.05mm |
0.35±0.05mm |
0.50±0.15mm |
0.50±0.15mm |
0.60±0.15mm |
200 |
|
Φ4.0 |
+0.35mm |
0.35±0.05mm |
0.35±0.05mm |
0.50±0.15mm |
0.50±0.15mm |
0.60±0.15mm |
100 |
|
Φ4.5 |
+0.35mm |
0.35±0.05mm |
0.35±0.05mm |
0.50±0.15mm |
0.50±0.15mm |
0.60±0.15mm |
100 |
|
Φ5.0 |
+0.35mm |
0.35±0.05mm |
0.35±0.05mm |
0.50±0.15mm |
0.50±0.15mm |
0.70±0.15mm |
100 |
|
Φ6.0-9.0mm |
+0.50mm |
0.45±0.05mm |
0.45±0.05mm |
0.60±0.15mm |
0.60±0.15mm |
0.70±0.15mm |
100 |
|
Φ10.0-12.0mm |
+0.70mm |
0.50±0.05mm |
0.50±0.05mm |
0.65±0.15mm |
0.65±0.15mm |
0.80±0.15mm |
50/30 |
|
Φ13.0-35.0mm |
+0.80mm |
0.50±0.05mm |
0.50±0.05mm |
0.70±0.15mm |
0.70±0.15mm |
0.80±0.20mm |
30/20 |
|
|
|
|
|||||
