PPS Lashing Rope

  • Detailed

Description

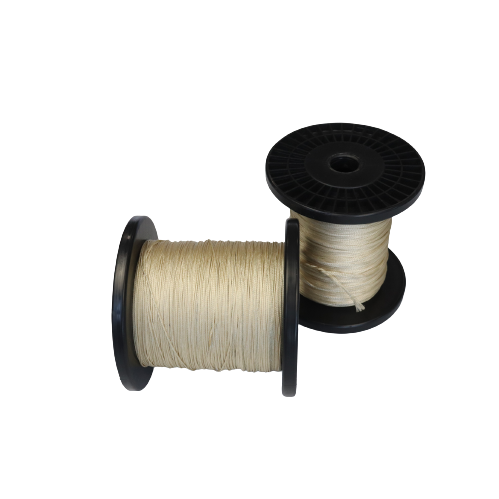

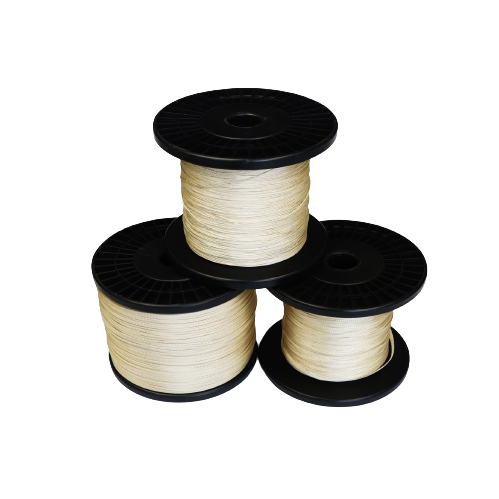

PPS lashing rope is woven from polyphenylene sulfide fiber material, which has high temperature resistance, corrosion resistance and high flame retardant performance. It is widely used for wire harness bundling protection in new energy motors, electromechanical equipment, vehicles and other fields.

Features

l   Operating temperature-70℃~200

l   Halogen-free, self-extinguishing once away from fire

l   Good chemical resistance



Technical Performance

Item

Technical Data

Test Standard

Appearance

No burr, No yarn fall off

Visual Inspection

Breaking strength

210N(Φ1.3mm

GB-T 8834-2016

Elongation at break

20%

ISO 2062

High temperature resistance

Breaking strength retention85%

200±3℃,72h

Dry heat shrinkage

5%Diameter 1.5mm

180℃,10min

Flame retardant rating

V-0

UL94

Low temperature performance

No crack after bending under -70

IEC60684

Resistant to gearbox oil

The tensile strength shall be at least 70% of the initial value

T/CEEIA 415-2019

8 cycles155°C40h-45°C8h

Structure



Dimension

Diametermm

Tolerancemm

Package lengthm

1.0

±0.1

800

1.3

±0.2

500

1.5

±0.2

500

1.8

±0.2

300

Note: Special size and package are available on request.
