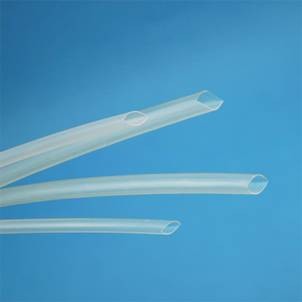

PVDF-Kynar Heat Shrinkable Tubing

TZRS-PVDF175(2X)
  • Approval: UL, VW-1, File No.E249362
  • Meet: RoHS, SAE-AMS-DTL-23053/18
  • Operating temperature: -55°C to + 175°C
  • Minimum fully recovery temperature: 175°C
    • Detailed

    PVDF-Kynar Heat Shrinkable Tubing



    Description


    TZRS-PVDF-(2X) Kynar Heat shrinkable Tubing is normally designated as kynar tubing, is a cross-linked, thin-walled, heat-shrinkable tubing offering a high degree of mechanical strength and high-temperature resistance. Fabricated from polyvinylidene fluoride, the tubing has outstanding abrasion resistance and cut-through properties in combination with high dielectric strength. It is inherently flame retardant, semi-rigid and highly resistant to most industrial fuels, chemicals and solvents. When heated in excess of 347°F (175°C), TZRS-PVDF-(2X)-B tubing rapidly shrinks to a skintight fit.



    Features


    ● Approval: UL, VW-1, File No.E249362

    ● Meet: RoHS, SAE-AMS-DTL-23053/18

    ● Operating temperature: -55°C to + 175°C

     Minimum fully recovery temperature: 175°C



    Applications


    TZRS-PVDF-(2X)-B tubing is typically used for shrink-fit protection and strain relief of wires, solder joints, terminals and connections. Suggested applications include automotive wiring, jackets, fuse coverings and military wire markers. Because the tubing is transparent, it allows see-through inspection and identification, and is ideal for use as a jacketing for components such as resistors and capacitors. The tubing is readily marked by hot-stamp and print-wheel equipment.



    Shrink Ratio


    TZRS-PVDF-(2X)-B tubing has a 2:1 shrink ratio. When freely recovered, the tubing will shrink to 50% of its as-supplied internal diameter. The recovered wall thickness is proportional to the degree of recovery. The operating temperature range is from -55°C (-67°F) to 175°C (347°F), with a shrinking temperature minimum of 175°C (347°F).



    Technical Performance


    Property

    Typical Data

    Test Method

    Tensile strength

    ≥45MPa

    ASTM D 638

    Ultimate elongation

    ≥300%

    ASTM D 638

    Ultimate elongation after aging

    ≥200%

    250×168h

    Flammability

    VW-1

    UL 224

    Longitudinal expansion rate

    -5%+5%

    ASTM D 2671

    volume resistivity

    ≥1013Ω.cm

    ASTM D 876

    Cold bending flexible

    No tracks

    -55×4h

    Heat shock

    No tracks

    300×4h

    corrosive characteristics

    No corrosion

    ASTM D 2671



    Dimensions


    Size

    As supplied D(mm)

    After full recoveredmm

    Standard package

    (M/Roll)

    Inner diameter d

    Wall thickness w

    Φ0.8

    ≥0.8

    ≤0.4

    0.25±0.05

    200

    Φ1.0

    ≥1.0

    ≤0.5

    0.25±0.05

    200

    Φ1.2

    ≥1.2

    ≤0.6

    0.25±0.05

    200

    Φ1.6

    ≥1.6

    ≤0.8

    0.25±0.05

    200

    Φ2.4

    ≥2.4

    ≤1.2

    0.25±0.05

    200

    Φ3.2

    ≥3.2

    ≤1.6

    0.25±0.05

    200

    Φ4.8

    ≥4.8

    ≤2.4

    0.25±0.05

    100

    Φ6.4

    ≥6.4

    ≤3.2

    0.30±0.08

    100

    Φ9.5

    ≥9.5

    ≤4.8

    0.30±0.08

    100

    Φ12.7

    ≥12.7

    ≤6.4

    0.30±0.08

    100

    Φ15.0

    ≥15.0

    ≤7.5

    0.40±0.08

    100

    Φ19.1

    ≥19.1

    ≤9.5

    0.43±0.08

    50

    Φ25.4

    ≥25.4

    ≤12.7

    0.48±0.08

    50

    Φ38.1

    ≥38.1

    ≤19.1

    0.51±0.08

    50

    Φ50.8

    ≥50.8

    ≤25.4

    0.58±0.08

    50
