SingleWall

Environment Friendly Heat Shrink Tubing

DBRS-105G(2X)NF
  • Meets UL 224, CAN / CSA C22.2 NO198.1 -99
  • Heat shrink ratio : 2:1
  • Flexible, non flame retardant, bright outer layer
  • Min. shrink temperature:70 ℃
  • Min. full recovery temperature :105 ℃
  • Continuous operating temperature : -55 ℃ ~ 105 ℃
  • Environmental standards:RoHS , IPC/JEDEC-J-STD-709 Class H material
  • Standard colors : transparent, black , white , red , yellow , green , blue and other four
  • international standard colors. More colors are available upon request.
    • Detailed

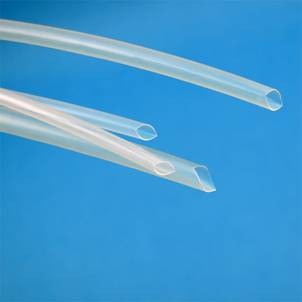

    Environment Friendly Heat Shrink Tubing


    Description


    VolsunDBRS-105G(2X)NF, made of radiation cross-linked polyolefin, carries excellentphysicochemical and electrical properties. Typical applications includeinsulation of electrical connections or wire splices, rust and corrosionresistance for soldered joints or connections, mechanical and wiring harnessprotection and insulation. This product is widely used in automotive,agricultural and household machinery with bent tubings where mechanicalprotection is required, electronics, life consumables, decoration and lighting,communications, ship, aircraft manufacturing and other fields.



    Features


    ● Meets UL 224, CAN / CSA C22.2 NO198.1 -99

     Heat shrink ratio : 2:1

    ● Flexible, non flame retardant, bright outer layer

     Min. shrink temperature:70 ℃

     Min. full recovery temperature :105 ℃

    ● Continuous operating temperature : -55 ℃ ~ 105 ℃

     Environmental standards:RoHS , IPC/JEDEC-J-STD-709 Class H material

     Standard colors : transparent, black , white , red , yellow , green , blue and other four international standard colors. More colors are available upon request.



    Technical Data


    Properties

    Typical Data

    Test Method

    Tensile strength

    ≥10.4MPa

    ASTM D 2671

    Elongation at break

     ≥200%

    ASTM D 2671

    Longitudinal change

    -5%+5%

    ASTM D 2671

    Flammability

    Non flame retardant

    -

    Voltage Withstand

    (Rated voltage, 600V)

    2500V1min without breakdown

    UL 224

    Breakdown strength

    ≥15kV/mm

    ASTM D 149

    Volume resistivity

    ≥1014Ω.cm

    IEC 60093

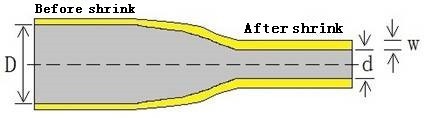

    Structure



    Dimension


    Sizemm

    As supplied D(mm)

    After full recovered (mm)

    Standard Package

    (M/roll)

    Inner diameter d

    Wall thickness w

    φ0.5/0.35

    0.7±0.2

    ≤0.35

    0.33±0.10

    200

    φ0.6/0.40

    0.9±0.2

    ≤0.40

    0.33±0.10

    200

    φ0.8/0.50

    1.1±0.2

    ≤0.50

    0.33±0.10

    200

    φ1.0/0.65

    1.5±0.2

    ≤0.65

    0.36±0.10

    200

    φ1.5/0.85

    2.0±0.2

    ≤0.85

    0.36±0.10

    200

    φ2.0/1.00

    2.5±0.2

    ≤1.00

    0.45±0.10

    200

    φ2.5/1.30

    3.0±0.2

    ≤1.30

    0.45±0.10

    200

    φ3.0/1.50

    3.5±0.2

    ≤1.50

    0.45±0.10

    200

    φ3.5/1.80

    4.0±0.2

    ≤1.80

    0.45±0.10

    200

    φ4.0/2.00

    4.5±0.2

    ≤2.00

    0.45±0.10

    200

    φ4.5/2.30

    5.0±0.2

    ≤2.30

    0.45±0.10

    100

    φ5.0/2.50

    5.5±0.2

    ≤2.50

    0.56±0.10

    100

    φ5.5/2.75

    6.0±0.2

    ≤2.75

    0.56±0.10

    100

    φ6.0/3.00

    6.5±0.2

    ≤3.00

    0.56±0.10

    100

    φ7.0/3.50

    7.5±0.3

    ≤3.50

    0.56±0.10

    100

    φ8.0/4.00

    8.5±0.3

    ≤4.00

    0.56±0.10

    100

    φ9.0/4.50

    9.5±0.3

    ≤4.50

    0.56±0.10

    100

    φ10/5.00

    10.5±0.3

    ≤5.00

    0.56±0.10

    100

    φ11/5.50

    11.5±0.3

    ≤5.50

    0.56±0.10

    100

    φ12/6.00

    12.5±0.3

    ≤6.00

    0.56±0.10

    100

    φ13/6.50

    13.5±0.3

    ≤6.50

    0.70±0.10

    100

    φ14/7.00

    14.5±0.3

    ≤7.00

    0.70±0.10

    100

    φ15/7.50

    15.5±0.4

    ≤7.50

    0.70±0.10

    100

    φ16/8.00

    16.5±0.4

    ≤8.00

    0.70±0.10

    100

    φ17/8.50

    17.5±0.4

    ≤8.50

    0.70±0.10

    100

    φ18/9.00

    19.0±0.5

    ≤9.00

    0.70±0.10

    100

    φ20/10.0

    22.0±0.5

    ≤10.0

    0.80±0.15

    100

    φ22/11.0

    24.0±0.5

    ≤11.0

    0.80±0.15

    100

    φ25/12.5

    26.0±0.5

    ≤12.5

    0.90±0.15

    50

    φ28/14.0

    29.0±0.5

    ≤14.0

    0.90±0.15

    50

    φ30/15.0

    31.5±1.0

    ≤15.0

    1.00±0.15

    50

    φ35/17.5

    36.5±1.0

    ≤17.5

    1.00±0.15

    50

    φ40/20.0

    41.5±1.0

    ≤20.0

    1.00±0.15

    50

    φ50/25.0

    ≥50.0

    ≤25.0

    1.10±0.15

    25

    φ60/30.0

    ≥60.0

    ≤30.0

    1.20±0.15

    25

    φ70/35.0

    ≥70.0

    ≤35.0

    1.30±0.20

    25

    φ80/40.0

    ≥80.0

    ≤40.0

    1.30±0.20

    25

    φ90/45.0

    ≥90.0

    ≤45.0

    1.30±0.20

    25

    φ100/50.0

    ≥100.0

    ≤50.0

    1.30±0.20

    25

    φ120/60.0

    ≥120.0

    ≤60.0

    1.30±0.20

    25

    φ150/75.0

    ≥150.0

    ≤75.0

    1.30±0.20

    25

    φ180/90.0

    ≥180.0

    ≤90.0

    1.30±0.20

    25

    φ210/105.0

    ≥210.0

    ≤105.0

    1.30±0.30

    25

    φ230/115.0

    ≥230.0

    ≤115.0

    1.30±0.30

    25

    φ250/125.0

    ≥250.0

    ≤125.0

    1.30±0.30

    25

    Φ300/150.0

    ≥300.0

    ≤150.0

    1.30±0.30

    25

    Note: Non-standard dimensions and packages also available on your request
