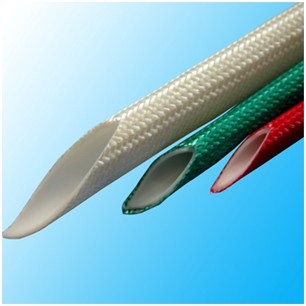

Silicone Rubber Fiberglass Sleeves—silicone rubber outside fiberglass braided
- NS-GF200RUB-W
- It feels right soft. Good electricity, self-extinguishing, solvent resistant
- Breakdown voltage, Over 7000V with 50relative humidity, Over 2200Vwith 90relative humidity
- Operating temperature：-10℃～200℃
- RoHS compliant
- Standard color：White, other colors on quest Meets：UL 1441MIL-1-3190/3
- Detailed
Silicone Rubber Fiberglass Sleeves—silicone rubber outside fiberglass braided
Description
There are two types of silicone rubber glass fiber sleeves available from Volsun Electronics. Type Binner silicone rubber outside fiber glass braided—tightly braiding the inner silicone rubber tubing with fiber glass sleeves.
Type B is typically used for conveying high temperature and pressure liquids or usedon instruments or equipment where flexibilityabrasion resistance, mechanicalprotection and insulation are important and is often used to convey hightemperature and high pressure liquids.
Features
It feels right soft. Good electricity, self-extinguishing, solvent resistant
Breakdown voltage, Over 7000V with 50relative humidity, Over 2200Vwith 90relative humidity
Operating temperature：-10℃～200℃
RoHS compliant
Standard color：White, other colors on quest
Meets：UL 1441MIL-1-3190/3
Technical Performance
Type
Breakdown
voltage（V）
Volume
resistivity
(Ω.cm)
Temperature
resistance
Flammability
Average
Minim
7.0KV
7000
5000
1011
-40℃～200℃
UL1441
VW-1
Structure
Dimension
|
Internal Diameter (mm) |
Wall thickness (mm) |
||
|
Size |
Tolerances |
Silicone Rubber |
Fiberglass |
|
1.0~2.5 |
+0.20 |
0.40~0.50 |
0.20~0.30 |
|
3.0~4.5 |
+0.25 |
0.50~0.60 |
0.20~0.30 |
|
5.0~6.0 |
+0.30 |
0.60~0.70 |
0.25~0.35 |
|
7.0~8.0 |
+0.50 |
0.70~0.80 |
0.30~0.40 |
|
>9.0 |
>+0.50 |
0.80~0.90 |
0.35~0.45 |
