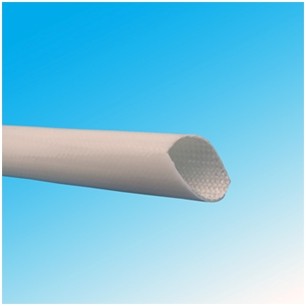

Silicone Rubber Fiberglass Sleeves—fiberglass outside braided silicone rubber

NS-GF200RUB-NF
  • It feels right soft Good dielectricity, self-extinguishing,solvent resistant
  • Breakdown voltage:Over 7000V with 50 relative humidity,Over 2200V with 90 relative humidity
  • Operating temperature:-10℃~200℃
  • RoHS compliant
  • Standard color:White, other colors on quest
    • Detailed

    Silicone Rubber Fiberglass Sleeves—fiberglass outside braided silicone rubber


    Description


     There are two types of silicone rubber glass fiber sleeves available from Volsun Electronics.etc.

     Inner fiberglass outside braided silicone rubber——coating the outside tightly braided fiberglass sleeves all over with silicone resin to form a layer of film and solidify it in high temperature.
    Type A is made in accordance with coated electronic insulating sleeves requirements specified in CAN/CSA C22.2ANS as well as NFPA electrical code chapter 1.4 sothat this product performs reliably in high temperature environment. And performance after long-term ageing is tested strictly according to the methods specified in UL 746B or the 0.17thchapter of NFPA electrical code.This product provides reliable insulation and protection for inside wireharness of H&N automobiles shipbuilding electrical machinery home appliance selector-heat installations special lamps and lanterns TV and electronic instruments.


    Features


    ● It feels right soft Good dielectricity, self-extinguishing,solvent resistant

    ● Breakdown voltage:Over 7000V with 50 relative humidity,Over 2200V with 90 relative humidity

    ● Operating temperature:-10℃~200℃

     RoHS compliant

     Standard color:White, other colors on quest



    Technical Performance


    Type

    Breakdown voltage(V)

    Volume resistivity

    (Ω.cm)

    Temperature resistance

    Flammability

    Average

    Minim

    7.0KV

    7000

    5000

    1011

    -40℃~200℃

    UL1441

    VW-1

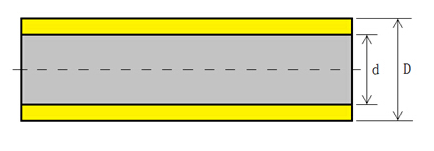

    Structure



    Type A Dimensions


    Internal Diameter (mm)

    Wall thickness (mm)



    Size

    Tolerances

    0.5~2.5

    +0.20

    0.40

    3.0~4.5

    +0.30

    0.45

    5.0~7.0

    +0.40

    0.50

    8.0~10.0

    +0.50

    0.65

    >12.0

    >+0.50

    0.70


    Note: Non-standard dimensions and packages also available on your request
