Silicone Resin Fiberglass Sleeving
- NS-GF200RES
- Flame Retardant, Environmental friendly
- Operating temperature：-40°C～200 °C
- RoHS compliant
- Standard color：White, other colors on quest
- Detailed

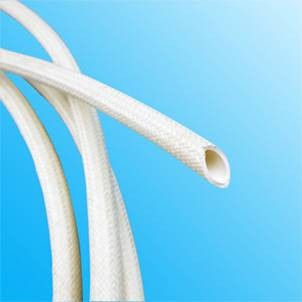

Silicone Resin Fiberglass Sleeving
Description
Silicone resin fiberglass sleeving is a tightly and regularly braided E-glass fiber sleeves coated with specially formulated organic silicone resin all over the surface and is subsequently solidified through high temperature treatment. Well-known for its excellent dielectric performance and high flexibility, silicone fiberglass sleeving finds extensive application in electrical markets like insulation and protection of H grade electric machinery , commonly known as motors, household appliances, electric heating equipment, and insulation of wire bundling against heat transfer etc.
Features
Flame Retardant, Environmental friendly
Operating temperature：-40°C～200 °C
RoHS compliant
Standard color：White, other colors on quest
Technical Performance
Type
Breakdown voltage(V)
Volume resistivity
Temperature resistance
Flame retardant
Average
Volume resistivity(Ω
cm)
(Ω.cm)
1.2KV
1200
800
1011
-40℃～200℃
1.5KV
1500
1000
UL1441
2.5KV
2500
1800
VW-1
4.0KV
4000
3000

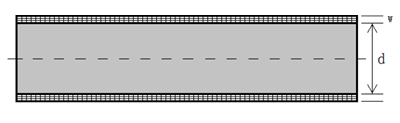

Structure
Dimensions
Internal Diameter (mm)
Wall thickness (mm)
Size
Tolerances
1.2KV
1.5KV
2.5KV
4.0KV
0.5～2.5
+0.20
0.18±0.10
0.18±0.10
0.20±0.10
0.35±0.10
3.0～4.5
+0.30
0.23±0.10
0.24±0.10
0.26±0.10
0.40±0.10
5.0～6.0
+0.40
0.28±0.10
0.28±0.10
0.30±0.10
0.45±0.10
7.0～8.0
+0.50
0.40±0.10
0.40±0.10
0.42±0.10
0.55±0.10
≥9.0
≥+0.50
0.43±0.10
0.43±0.10
0.45±0.10
0.60±0.10
Note: Non-standard dimensions and packages also available on your request
