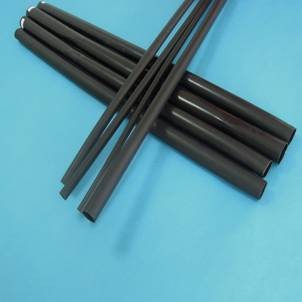

Semi rigid Heavy Wall Adhesive lined Heat Shrink Tubing

HBDJ-110G (3.5X) NF
  • Semi rigid, non flame retardant, environment friendly
  • Min. shrink temperature: 80℃
  • Min full recovery temperature: 120℃
  • Continuous operating temperature: -55℃~110℃ Shrink ratio: 3.5:1
  • RoHS compliant
  • Standard color: black, more colors are available upon request
    • Detailed

    Semi rigid Heavy Wall Adhesive lined Heat Shrink Tubing


    Description


    Semi rigid heavy wall adhesive lined heat shrink tubing is made of polyolefin materials extruded with a layer of hot melt adhesive inside. This product carries excellent insulation and sealing, corrosion resistance performance, with which it was found in wide applications like insulations and protections for high voltage cable middle connections and terminations , busbars, as well as different kinds of pipelines because of its excellent corrosion resistance, moisture-proof, and abrasion resistance performances.



    Features


    Semi rigid, non flame retardant, environment friendly

    Min. shrink temperature: 80℃

    Min full recovery temperature: 120℃

    Continuous operating temperature:  -55℃~110℃

    Shrink ratio: 3.5:1

    RoHS compliant

    Standard color: black, more colors are available upon request



    Technical Performance


    Properties

    Typical Data

    Test Method

    Tensile strength

    14MPa

    ASTM D 2671

    Elongation

    400%

    ASTM D 2671

    Tensile strength after heat ageing

    12MPa

    150℃  ×168h

    Elongation after heat ageing

    300%

    150℃  ×168h

    Longitudinal change

    0~-10%

    ASTM D 2671

    Flammability

    Non flame retardant

    -

    Dielectric strength

    18kV/mm

    IEC 60243

    Volume resistivity

    1013Ω.cm

    IEC 60093




    Hot melt adhesive


    Property

    Typical data

    Test method/conditions

    Softening point

    85±5

    ASTM E 28

    Water absorption

    <0.5%

    ASTM D 570

    Peel strength(PE)

    ≥120N/25mm

    ASTM D 1000

    Peel strength(AI)

    ≥80N/25mm

    ASTM D 1000

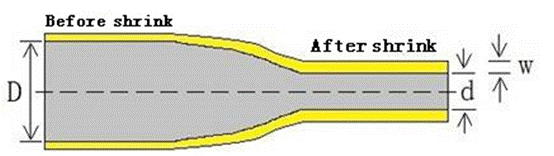

    Structure




    Dimensions


    Size(mm)

    As supplied

    D(mm)

    Recovered (mm)

    Standard package

    Internal diameter

    d

    Wall thickness

    w

    (m/pc)

    Φ9.0/3.0

    ≥9.0

    ≤3.0

    ≥1.8

    1.00~1.50

    Φ13.0/4.0

    ≥13.0

    ≤4.0

    ≥2.4

    1.00~1.50

    Φ22.0/6.0

    ≥22.0

    ≤6.0

    ≥2.7

    1.00~1.50

    Φ33.0/8.0

    ≥33.0

    ≤8.0

    ≥3.2

    1.00~1.50

    Φ40.0/12.0

    ≥40.0

    ≤12.0

    ≥4.1

    1.00~1.50

    Φ45.0/12.0

    ≥45.0

    ≤12.0

    ≥4.1

    1.00~1.50

    Φ55.0/16.0

    ≥55.0

    ≤16.0

    ≥4.1

    1.00~1.50

    Φ75.0/22.0

    ≥75.0

    ≤22.0

    ≥4.1

    1.00~1.50

    Φ85.0/25.0

    ≥85.0

    ≤25.0

    ≥4.3

    1.00~1.50

    Φ95.0/30.0

    ≥95.0

    ≤30.0

    ≥4.3

    1.00~1.50

    Φ105.0/30.0

    ≥105.0

    ≤30.0

    ≥4.3

    1.00~1.50

    Φ115.0/34.0

    ≥115.0

    ≤34.0

    ≥4.3

    1.00~1.50

    Φ130.0/36.0

    ≥130.0

    ≤36.0

    ≥4.3

    1.00~1.50

    Φ160.0/50.0

    ≥160.0

    ≤50.0

    ≥4.3

    1.00~1.50

    Φ180.0/50.0

    ≥180.0

    ≤50.0

    ≥4.3

    1.00~1.50

    Φ200.0/60.0

    ≥200.0

    ≤60.0

    ≥4.3

    1.00~1.50

    Φ235.0/65.0

    ≥235.0

    ≤65.0

    ≥4.5

    1.00~1.50

    Φ265.0/75.0

    ≥265.0

    ≤75.0

    ≥4.5

    1.00~1.50

    Φ300.0/85.0

    ≥300.0

    ≤85.0

    ≥4.5

    1.00~1.50

    Φ350.0/100.0

    ≥350.0

    ≤100.0

    ≥4.5

    1.00~1.50


    Note: Non-standard dimensions and package are available on request
