Silicone Cold Shrink Tubing

RUBLS-SILIC
  • Continuous operating temperature:-60°C~200°C
  • Shrink Ratio :4:1 or so .Suits for an extensive range of cable sizes because of the shrinkage
  • Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water
  • Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun
  • Excellent tear resistance
  • Simple installation, requires no special heating tools , and adhesive to seal the connections
  • Standard color: black
    • Detailed

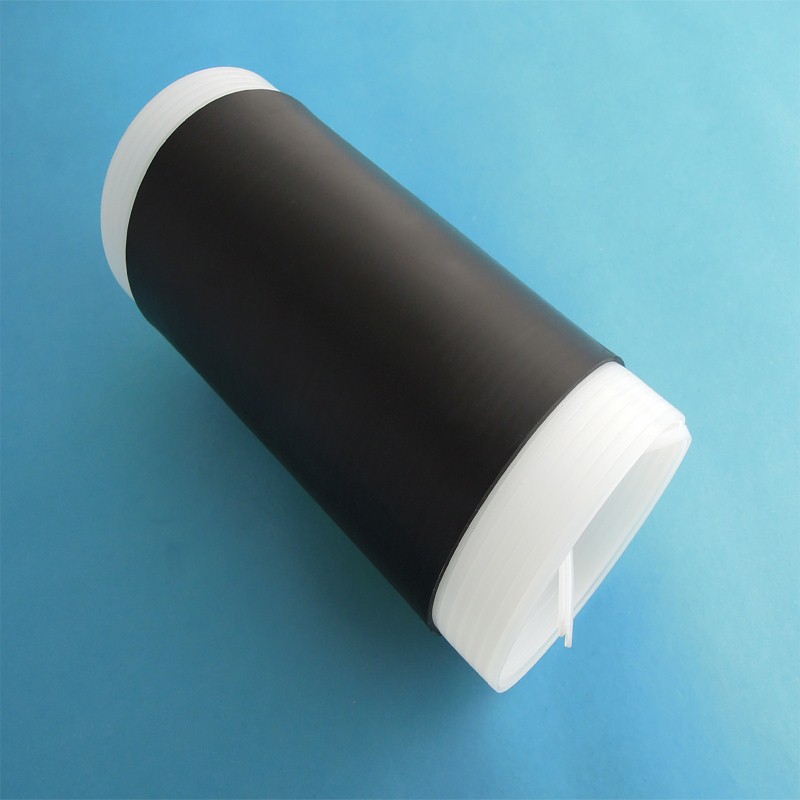

    RUBLS-SILIC Silicone Rubber Cold Shrink tube

    Lug and Connector Insulators



    Description


    RUBLS-SILIC Silicone Rubber Cold shrink tube Series Cold Shrink Lug and Connector Insulators is made of special purpose silicone rubber with a high shrink ratio and excellent physical and mechanical properties like slab and prick resistance. It reliably seals electrical connections of electric communications and cable televisions against water and moisture and effectively insulates wire and cable connections or joints and other electrical connections etc.



    Features


    ● Continuous operating temperature:-60°C~200°C

    ● Shrink Ratio :4:1 or so .Suits for an extensive range of cable sizes because of the shrinkage

    ● Retains its resiliency and pressure even after prolonged years of ageing and exposure, seals tight against moisture and water

    ● Good weather resistance, ozone ageing, ultraviolet and salt mist corrosion resistance, performs stably under long-period exposure to the sun

    ● Excellent tear resistance

    ● Simple installation, requires no special heating tools , and adhesive to seal the connections

    ● Standard color: black



    Technical Performance


    Properties

    Typical Data

    Test Method

    HS

    45A

    ASTM D 2240

    Tensile Strength

    9.8MPa

    GB/T 528

    Elongation at break

    840%

    GB/T 528

    Tear Strength

    39kN/m

    ASTM D 624

    Dielectric Strength

    23kV/mm

    ASTM D 149

    Volume Resistivity

    9×1015Ω.cm

    ASTM D 257


    Structure




    Dimensions


    Size

    (mm)

    Inner Diameter D(mm)

    Min Cable Outer Diameter  (mm)

    Max Cable Outer Diameter (mm)

    Recovered Length L(mm)

    VS28-1.4

    Ф28

    6.0

    25.0

    36

    VS28-1.7

    Ф28

    6.0

    25.0

    43

    VS28-5

    Ф28

    6.0

    25.0

    130

    VS28-6

    Ф28

    6.0

    25.0

    150

    VS32-2.2

    Ф32

    10.5

    27.0

    57

    VS32-5

    Ф32

    10.5

    27.0

    130

    VS32-7

    Ф32

    10.5

    27.0

    178

    VS32-8

    Ф32

    10.5

    27.0

    203

    VS32-9

    Ф32

    10.5

    27.0

    229

    VS32-11

    Ф32

    10.5

    27.0

    279

    VS32-12

    Ф32

    10.5

    27.0

    305

    VS35-5

    Ф35

    10.5

    30.0

    130

    VS35-7

    Ф35

    10.5

    30.0

    178

    VS35-8

    Ф35

    10.5

    30.0

    203

    VS35-9

    Ф35

    10.5

    30.0

    229

    VS35-11

    Ф35

    10.5

    30.0

    279

    VS35-12

    Ф35

    10.5

    30.0

    305

    VS42-6

    Ф42

    12.0

    36.0

    150

    VS42-7

    Ф42

    12.0

    36.0

    178

    VS42-8

    Ф42

    12.0

    36.0

    203

    VS42-9

    Ф42

    12.0

    36.0

    229

    VS42-11

    Ф42

    12.0

    36.0

    279

    VS42-12

    Ф42

    12.0

    36.0

    300

    VS45-6

    Ф45

    13.5

    39.0

    150

    VS45-7

    Ф45

    13.5

    39.0

    178

    VS45-8

    Ф45

    13.5

    39.0

    203

    VS45-9

    Ф45

    13.5

    39.0

    229

    VS45-11

    Ф45

    13.5

    39.0

    279

    VS45-12

    Ф45

    13.5

    39.0

    300

    VS50-6

    Ф50

    18.0

    45.0

    150

    VS50-7

    Ф50

    18.0

    45.0

    178

    VS50-8

    Ф50

    18.0

    45.0

    203

    VS50-9

    Ф50

    18.0

    45.0

    229

    VS50-11

    Ф50

    18.0

    45.0

    279

    VS50-12

    Ф50

    18.0

    45.0

    300

    VS58-6

    Ф58

    18.0

    51.0

    150

    VS58-7

    Ф58

    18.0

    51.0

    178

    VS58-8

    Ф58

    18.0

    51.0

    203

    VS58-9

    Ф58

    18.0

    51.0

    229

    VS58-11

    Ф58

    18.0

    51.0

    279

    VS58-12

    Ф58

    18.0

    51.0

    300

    VS68-6

    Ф68

    22.0

    63.0

    150

    VS68-7

    Ф68

    22.0

    63.0

    178

    VS68-8

    Ф68

    22.0

    63.0

    203

    VS68-9

    Ф68

    22.0

    63.0

    229

    VS68-11

    Ф68

    22.0

    63.0

    279

    VS68-14

    Ф68

    22.0

    63.0

    350
