Silicone fiberglass insulation sleeve for electric motor
Time: 2022-03-12 10:17:08 Copyfrom: SuZhou Volsun Electronics Technology Co.,Ltd.
NS-GF200RUB-N

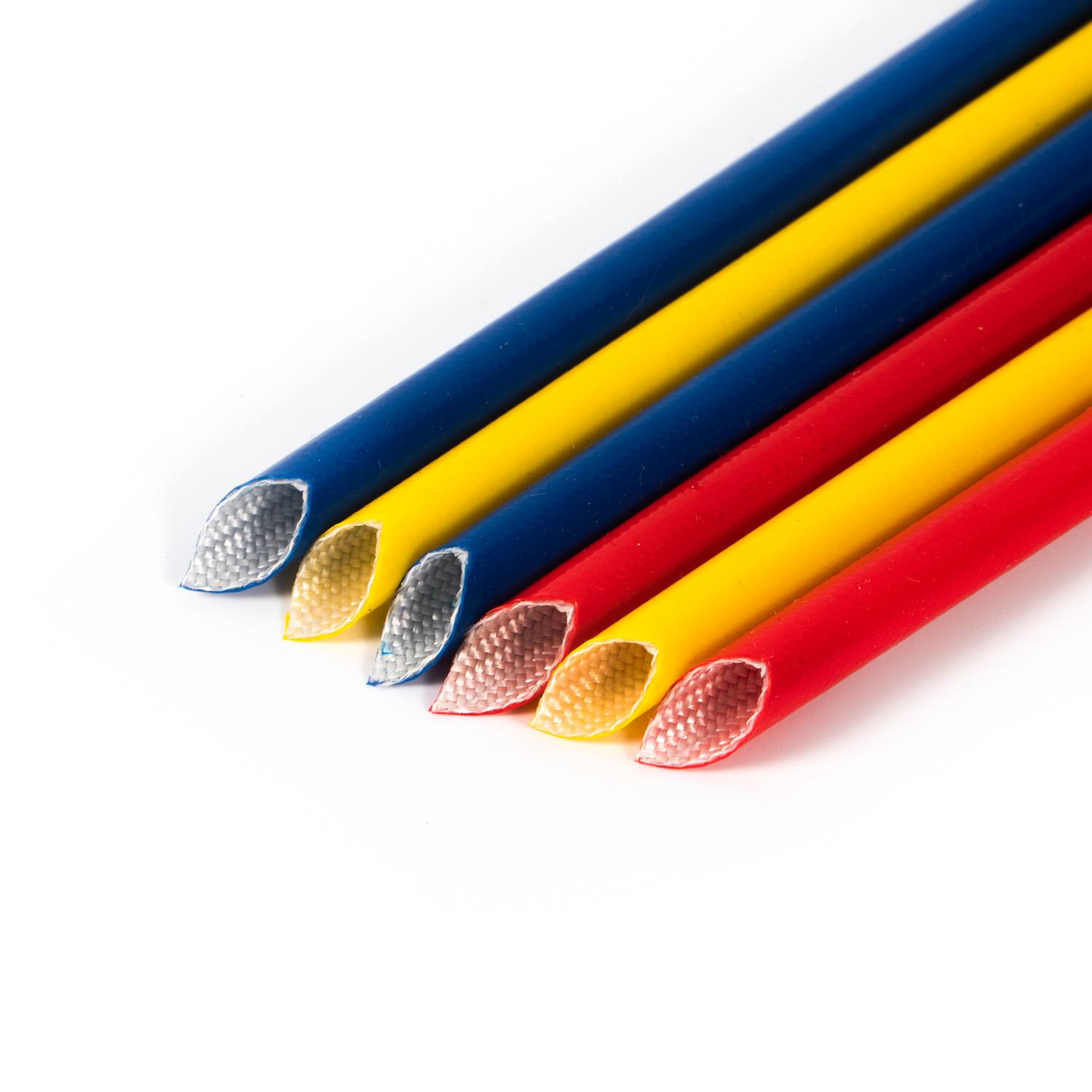

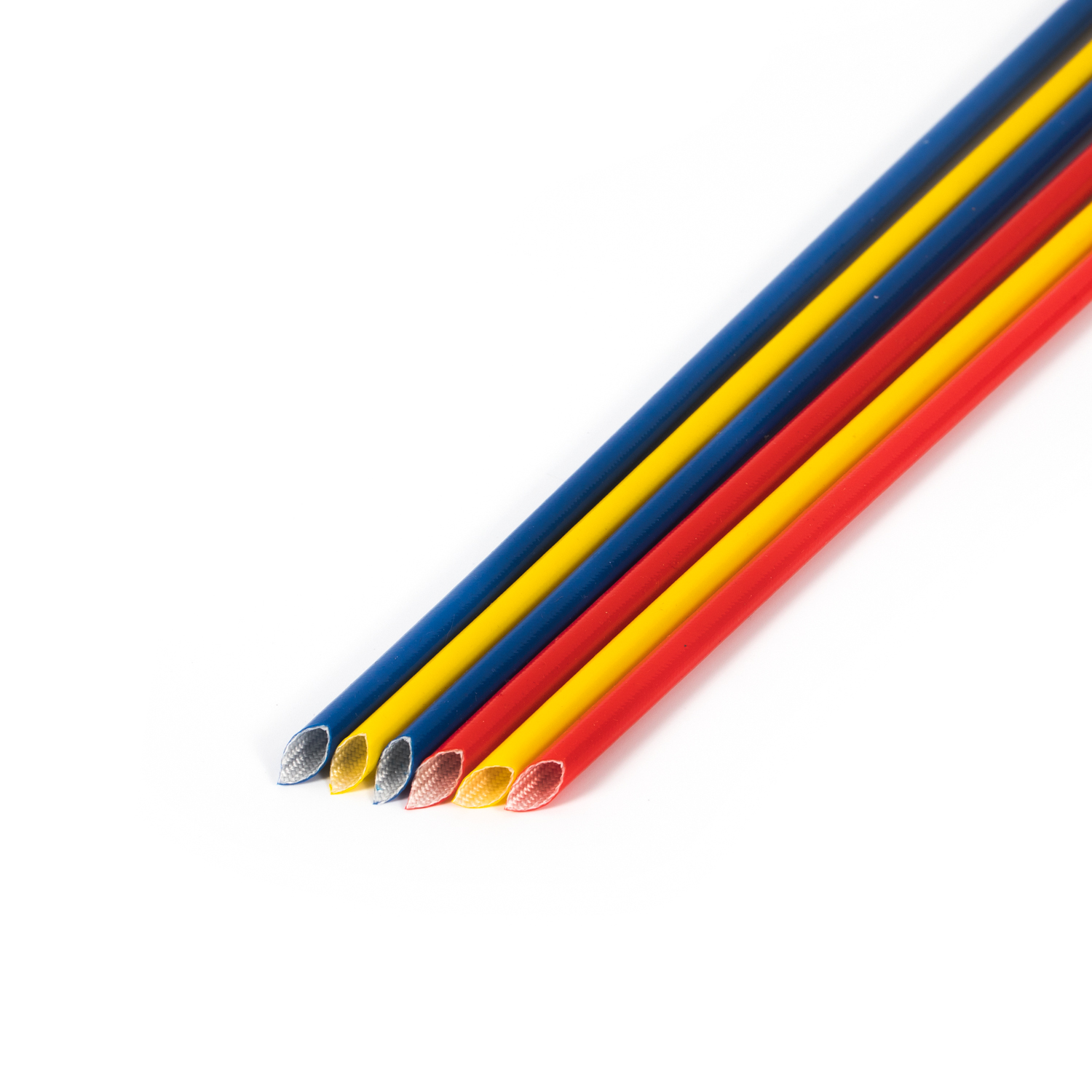

Silicone Rubber Fiberglass Sleeve—Inner Braided fiberglass Outside Silicone Rubber
Volsun fiberglass sleeve is widely used for wiring harness in electric motor,especially in new-energy automobile industry.They used our fiberglass sleeve to protect and fix the wiring harness.Our fiberglass sleeve carries many excellent technical performance,such as wear resistance,high temperature resistance,high flame restandat,etc.The following are the introduction of VOLSUN silicone fiberglass sleeve.
Description
Silicone rubber fiberglass sleeve is made of alkali-free fiberglass woven into a tube, coated with a layer of silicone rubber composite material on the outer layer of the tube, and then heated and cured. With high dielectric strength, good flexibility, heat resistance aging, flame retardant, temperature resistance up to 200℃.
Widely used in household electrical appliances, motors, electromechanical equipment, vehicles, ships and other circuit insulation protection.
Features
Operating temperature：-40°C~200°C
Standard color: White, red, yellow, blue, green, black,other colors on quest
Technical Performance
|
Type |
Breakdown voltage(V) |
Volume resistivity
(Ω.cm) |
Temperature
resistance |
Flammability |
|
|
Average |
Minim |
||||
|
4.0KV |
UL94 4000 3000 1011 -40℃~200℃ HB Grade |
||||
|
7.0KV |
7000 |
5000 |
1011 |
-40℃~200℃ |
UL 94
HB Grade |
Structure

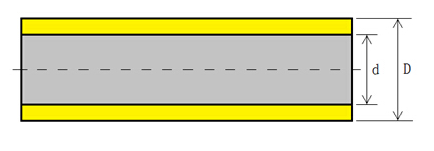

Dimension
|
|
ID(mm) |
|
|
Wall Thickness(mm) |
Packaging |
|
|
Size |
|
Tolerance |
4000V |
|
7000V |
(Roll/M) |
|
Φ0.5 |
|
－0.1～+0.20 |
0.40±0.1 |
|
0.45±0.1 |
200 |
|
Φ0.8 |
|
－0.1～+0.20 |
0.40±0.1 |
|
0.45±0.1 |
200 |
|
Φ1.0 |
|
－0.1～+0.20 |
0.40±0.1 |
|
0.45±0.1 |
200 |
|
Φ1.5 |
|
－0.1～+0.25 |
0.45±0.1 |
|
0.50±0.1 |
200 |
|
Φ2.0 |
|
－0.1～+0.25 |
0.45±0.1 |
|
0.50±0.1 |
100 |
|
Φ2.5 |
|
－0.1～+0.25 |
0.45±0.1 |
|
0.50±0.1 |
100 |
|
Φ3.0 |
|
－0.1～+0.25 |
0.45±0.1 |
|
0.50±0.1 |
100 |
|
Φ3.5 |
|
－0.1～+0.35 |
0.50±0.1 |
|
0.55±0.1 |
100 |
|
Φ4.0 |
|
－0.1～+0.35 |
0.50±0.1 |
|
0.55±0.1 |
100 |
|
Φ4.5 |
|
－0.1～+0.35 |
0.50±0.1 |
|
0.55±0.1 |
100 |
|
Φ5.0 |
|
－0.1～+0.35 |
0.50±0.1 |
|
0.55±0.1 |
100 |
|
Φ5.5 |
|
－0.1～+0.40 |
0.55±0.1 |
|
0.60±0.1 |
100 |
|
Φ6.0 |
|
－0.2～+0.40 |
0.55±0.1 |
|
0.60±0.1 |
100 |
|
Φ7.0 |
|
－0.2～+0.50 |
0.55±0.1 |
|
0.60±0.1 |
100 |
|
Φ8.0 |
|
－0.2～+0.50 |
0.55±0.1 |
|
0.65±0.1 |
50 |
|
Φ9.0 |
|
－0.2～+0.50 |
0.55±0.1 |
|
0.65±0.1 |
50 |
|
Φ10.0 |
|
－0.2～+0.70 |
0.65±0.15 |
|
0.70±0.15 |
50 |
|
Φ11.0 |
|
－0.2～+0.70 |
0.65±0.15 |
|
0.70±0.15 |
50 |
|
Φ12.0 |
|
－0.2～+0.70 |
0.65±0.15 |
|
0.70±0.15 |
50 |
|
Φ13.0 |
|
－0.3～+0.80 |
0.70±0.15 |
|
0.75±0.15 |
50 |
|
Φ14.0 |
|
－0.3～+0.80 |
0.70±0.15 |
|
0.75±0.15 |
50 |
|
Φ15.0 |
|
－0.3～+0.80 |
0.70±0.15 |
|
0.75±0.15 |
50 |
|
Φ16.0 |
|
－0.3～+0.80 |
0.70±0.15 |
|
0.75±0.15 |
50 |
|
Φ17.0 |
|
－0.5～+1.00 |
0.75±0.20 |
|
0.80±0.20 |
30 |
|
Φ18.0 |
|
－0.5～+1.00 |
0.75±0.20 |
|
0.80±0.20 |
30 |
|
Φ19.0 |
|
－0.5～+1.00 |
0.80±0.20 |
|
0.85±0.20 |
30 |
|
Φ20.0 |
|
－0.5～+1.00 |
0.80±0.20 |
|
0.85±0.20 |
30 |
|
Φ22.0 |
|
－0.5～+1.00 |
0.85±0.20 |
|
0.90±0.20 |
30 |
|
Φ25.0 |
|
－0.5～+1.00 |
0.95±0.20 |
|
1.05±0.20 |
30 |
|
Φ30.0 |
|
－0.5～+2.00 |
1.05±0.25 |
|
1.15±0.25 |
30 |
Non-standard dimensions and packages also available on your request
More detail please contact us by volsuntube@szvolsun.com
